| Multi Industrial
Monitors from 6.5" to 19" |
|
 |
| Features |
|
Aluminum front pane,
meet IP65 standard for tough working environments |
|
|
Optional RS-232 or USB
interface touch screen |
|
|
Full OSD Function in
the front panel |
|
|
Over 300cd/m2 high brightness
and 50000hrs MTFB long lifetime panel |
|
|
Support both Analog VGA
and DVI interfaces for most of general system boards |
|
M models support 9~36V
DC power input for mobile application |
|
Robust chassis and retention
kit structure for shocking vibration requirement |

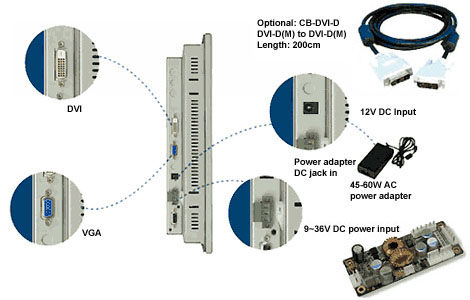

| Support both analog
VGA and DVI input |
| Model |
65GS |
84GS |
104GS |
121GS |
150GS |
170GS |
190GS |
LCD
(inches) |
6.5 |
8.4 |
10.4 |
12.1 |
15 |
17 |
19 |
Input
Interface |
Analog
VGA |
Analog
VGA + DVI-D |
|
| Support
9~36V DC power input for mobile application |
| Factories and mobile environment
such as cars and engineer vehicles usually use not only
12V but also 24V DC as power source, 9~36V power input
solution could adapt more appliance requirement. |

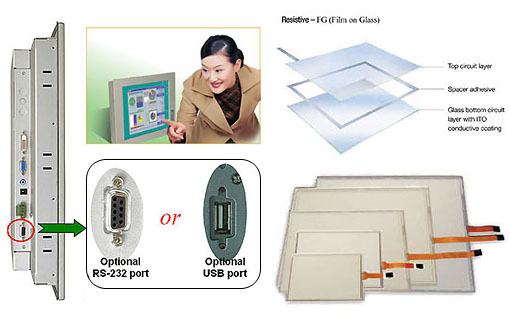

| Hi-optical
RS-232 or USB interface touch screen |
DM series provides RS-232
reserved port for touch screen. The DM provides T-R model
with high strength Fiber Glass Touch Screen for appliances.
 |
| Full
OSD Function |
|
|
The DM series with full OSD function in the front panel,
users can easily configure all monitor functions by
the water proof OSD function keys.
|
 |

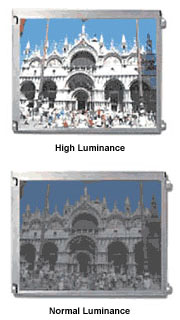

| High
Brightness Panel |
| Out-door applications
are usually required by high brightness environments.
The luminance will be reduced by touch screen to protection
lens on the panel. The typical panels which are usually
lower than 200 cd/m2, DM series use the high brightness
panel (more than 300 cd/m2) to fit specific requirements. |
| Model |
65GS |
84GS |
104GS |
121GS |
150GS |
170GS |
190GS |
LCD
(inches) |
6.5 |
8.4 |
10.4 |
12.1 |
15 |
17 |
19 |
Brightness
(cd/m2) |
500/400 |
450/220 |
400/230 |
400 |
350 |
300 |
300 |
|

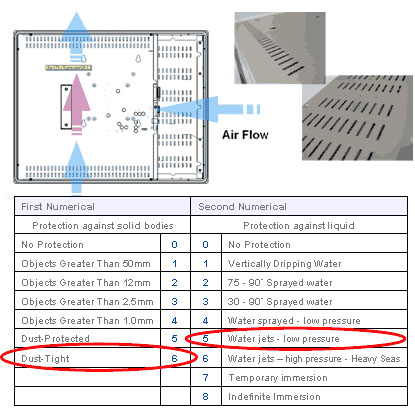

| Advanced
thermal and air-flow design |
|
Thermal is one of the critical points for monitor,
especially in industrial applications. The lifetime
of LCD panel, backlight and inverter were directly connected
to the ambient temperature. The New Single Way design
enhances thermal performance to almost 10XC.
|
| IP65 Waterproof
Aluminum front panel |
| IP65 standard
is the highest dusty, water and oil proof level in general
usage. It absolutely prevents any micro-particle into
the system from front panel, and let the system adapting
harsh environment. |
| |
Rack |
Panel |
Wall |
Stand |
Arm |
Din |
DM-65GS
( 6.5" ) |
Rk-065MS-R10 |
Pk-065M |
Wk-065MS-R10 |
Stand-100-RS |
Arm-11-RS |
Dk-065MS |
DM-84GS
(8.4" ) |
Rk-084MS-R10 |
Pk-084M |
Wk-084MS-R10 |
Stand-100-RS |
Arm-11-RS |
--- |
DM-104GS
( 10.4" ) |
Rk-104MS-R10 |
Pk-104M |
Wk-104MS-R10 |
Stand-100-RS |
Arm-11-RS |
--- |
DM-121GS
(12.1" ) |
Rk-121MS-R10 |
Pk-121M |
Wk-121MS-R10 |
Stand-100-RS |
Arm-11-RS |
--- |
DM-150GS
(15" ) |
Rk-150MS-R10 |
Pk-150M |
Wk-150MS-R10 |
Stand-100-RS |
Arm-31-RS |
--- |
DM-170GS
(17" ) |
Rk-170MS-R10 |
Pk-170M |
Wk-170MS-R10 |
Stand-100-RS |
Arm-31-RS |
--- |
DM-190GS
(19" ) |
Rk-190MS-R10 |
Pk-190M |
Wk-190MS-R10 |
Stand-200-RS |
Arm-31-RS |
--- |
 |
| Specifications |
 Models |
DM-65GS
|
DM-84GS
|
DM-104GS |
| LCD
Size |
6.5" |
8.4" |
10.4" |
| Input
Interface |
Analog
VGA |
| Max.
Resolution |
640 x 480 |
800 x 600 |
800 x 600 |
| Brightness
(cd/m2 ) |
400 / 500 |
220 / 450 |
230 / 400 |
| Contrast |
550:1 |
500:1 |
500:1 |
| LCD
Color |
262k |
262k |
262k |
| View
Angle (H/W) |
140/120 |
130/110 ; 120/100 |
120/100 |
| Pixel
Pitch (mm) |
0.207 |
0.213 |
0.264 |
| Front
Frame |
Aluminum |
| Chassis |
Heavy-duty
Steel |
| OSD
Function |
Yes |
| Power
Supply |
12VDC |
12VDC
or 9~36VDC (optional) |
| Power
Adapter |
25W, 63000-UP0251E12PL02-RS |
| Mounting |
Panel/Rack/Wall/
Arm(100x100)/Stand/Din |
Panel/Rack/Wall/
Arm(100x100)/Stand |
| Operating
Temperture |
0XC ~ 50XC |
| Front
Panel Protection |
Meets
IP65 |
Dimension
(WxHxD)
(mm) |
183 x 143 x 41 |
244 x 178 x 49 |
312 x 242 x
53 |
| Net/GW |
1 kg
|
1.8 kg |
3 kg |
| Models |
DM-121GS
|
DM-150GS
|
DM-170GS |
DM-190GS |
| LCD
Size |
12.1" |
15" |
17" |
19" |
| Input
Interface |
Analog
VGA + DVI-D |
| Max.
Resolution |
800 x 600 |
1024 x 768 |
1280 x 1024 |
1280 x 1024 |
| Brightness
(cd/m2 ) |
400 |
350 |
300 |
300 |
| Contrast |
500:1 |
400;1 |
500:1 |
700;1 |
| LCD
Color |
262k |
262k |
1.62M |
1.62M |
| View
Angle (H/W) |
140/110 |
120/100 |
140/'130 |
140/'130 |
| Pixel
Pitch (mm) |
0.3075 |
0.297 |
0.264 |
0.294 |
| Front
Frame |
Aluminum |
| Chassis |
Heavy-duty
Steel |
| OSD
Function |
Yes |
| Power
Supply |
12VDC
or 9~36VDC (optional) |
| Power
Adapter |
45W, 63000-UP451E12P81L-RS |
| Mounting |
Panel/Rack/Wall/
Arm(100x100)/Stand |
| Operating
Temperture |
0XC ~ 50XC |
| Front
Panel Protection |
Meets
IP65 |
Dimension
(WxHxD)
(mm) |
340 x 260 x 58 |
410 x 309 x 65.1 |
452 x 356 x
65.2 |
482 x 399 x 73 |
| Net/GW |
3.8 kg
|
6 kg |
8.6 kg |
10 kg |
|
| 6.5" |
| DM-65GS |
6.5" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-65GS/T-R |
6.5" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-65GHS |
6.5" 500cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-65GHS/T-R |
6.5" 500cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
|
|
| 8.4" |
| DM-84GS |
8.4" 220cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-84GMS |
8.4" 220cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-84GS/T-R |
8.4" 220cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-84GMS/T-R |
8.4" 220cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
| DM-84GHS |
8.4" 450cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-84GHMS |
8.4" 450cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-84GHS/T-R |
8.4" 450cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-84GHMS/T-R |
8.4" 450cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
|
|
| 10.4" |
| DM-104GS |
10.4" 230cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-104GMS |
10.4" 230cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-104GS/T-R |
10.4" 230cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-104GMS/T-R |
10.4" 230cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
| DM-104GHS |
10.4" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-104GHMS |
10.4" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-104GHS/T-R |
10.4" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-104GHMS/T-R |
10.4" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
|
|
| 12.1" |
| DM-121GS |
12.1" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-121GMS |
12.1" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-121GS/T-R |
12.1" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-121GMS/T-R |
12.1" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
| DM-121GS-USB/T-R |
12.1" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-121GMS-USB/T-R |
12.1" 400cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
|
|
| 15" |
| DM-150GS |
15" 350cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-150GMS |
15" 350cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-150GS/T-R |
15" 350cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-150GMS/T-R |
15" 350cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
| DM-150GS-USB/T-R |
15" 350cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-150GMS-USB/T-R |
15" 350cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
|
|
| 17" |
| DM-170GS |
17" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-170GMS |
17" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-170GS/T-R |
17" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-170GMS/T-R |
17" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
| DM-170GS-USB/T-R |
17" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-170GMS-USB/T-R |
17" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
|
|
| 19" |
| DM-190GS |
19" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color |
| DM-190GMS |
19" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
9~36VDC input |
| DM-190GS/T-R |
19" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-190GMS/T-R |
19" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
| DM-190GS-USB/T-R |
19" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen |
| DM-190GMS-USB/T-R |
19" 300cd/m2 LCD
Monitor, Aluminum Front Panel, Silver Color,
Touch Screen, 9~36VDC input |
|
|
|
|
|
|
|
|
