| LCD Monitor/ Keyboard/ Mouse/ Speak/ KVMA switch 5-in-1 1U Height Drawer |
|
 |
| The all-in-one LKM KVM module series has one 15" LCD screen, touch-pad, speakers, keyboard and KVMA switch. The fully integrated 1U LKM console enables direct single-point control for up to eight computers, saving rack space and reducing operational complexity. |
| Features |
 |
Outstanding LCD Module : Channel change control, auto scan control, programmable station name |
 |
| |
KVMA Switch : 8 port KVMA switch can be manually or automatically set via LCD module |
| |
Standard support of English version keyboard. Optional Japanese, German, French, Italian version keyboard support |
| |
Embedded speaker can support alarm warning notice or audio application |
| |
Hot Pluggable - Add or remove computers without having to power down the switch |
 |
| User Friendly Design |
 OSD Control Buttons |
OSD Function |
 |
The LKM modules have an OSD function on the keyboard cover, enabling simplified configuration of the monitor functions. |
| Screens of OSD Operating |
 |

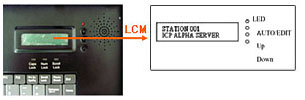

| LCD Module (LCM) |
 LCM buttons on the LKM control the switching of computers from one to another. The LKM passes the signals between the computers and the keyboard, mouse and monitor depending on which computer is currently selected. |
| Flexible Scan time |
| The LKM-9268G/9358G auto scan mode ,enables automatic switching between all available stations at 10 second interval. |
|
| Rack Mount Support |
 |

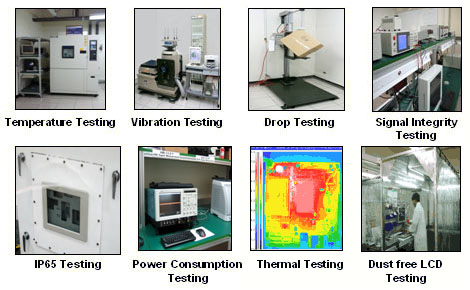

| Robust Design |
More than ten comprehensive quality assurance tests are performed on all LKM products throughout the product development cycle to enable adaptation to harsh operational environments. The LKM series can endure operating temperatures between 0°C~50°C, 10G peak to peak acceleration shock, and special vibration impacts.
|
 |
 |
| Hot-plug |
| The LKM series interfaces all support hot-plug functions for easy addition or removal of PCs. A mouse or keyboard can be disconnected from the console port and plugged back in at any time. |
| RoHS Compliance |
|
 We are committed to compliance with all applicable laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) in electrical and electronic products.
Our goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances have been virtually eliminated (to levels below legal limits) for all products.
|

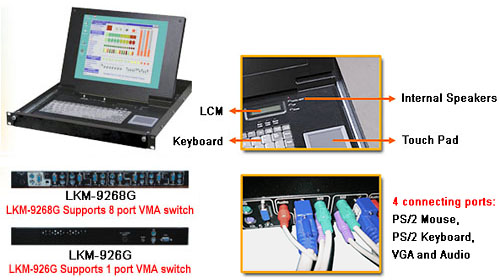

| LKM-926G/9268G |
| 15" LCD Monitor/Keyboard/Mouse/Speak/KVMA switch 5-in-1 1U Height Drawer. No special cables required to connect up to 8 computers! |
|

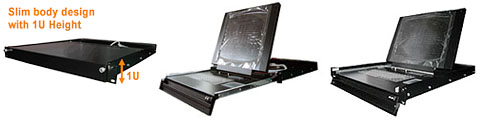

 All-in-one Design |
An LCD display, keyboard, touch pad, and single or eight port KVMA switch are all integrated into a single console that can easily be folded into a 1U enclosure.This design saves space in a standard rack in server control centers, internet data centers and network operating center.. etc.
 |

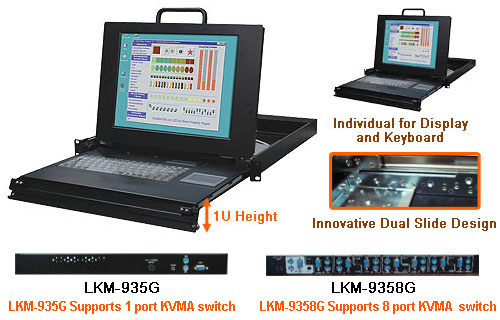

| LKM-935G/9358G |
15" LCD Monitor/Keyboard/Mouse/Speak/KVMA switch 5-in-1 1U Height Drawer. No special cables required to connect up to 8 computers!  |
| Dual Slide Design |
|
 LKM-935G/9358G offers more efficient rack space-saving. The LCD module and the keyboard module can be slided in and out separately. When the keyboard is not in use , the user can slide the keyboard into the console and leave the LCD display exposed for continued monitoring at any time, while saving valuable space for the user.
|
| Handle Design |
|
The LKM-935G/9358G has a special handle that allows an operator to open and "Pull and Push" the LKM device more easily.
|
 |
|
| Model |
LKM-935G/926G |
LKM-9358G/LKM-9268G |
| Computer Connections |
1 |
8 |
| Display |
15" TFT Color LCD display
| • |
Resolution: 1024 x 768 |
| • |
Brightness: 350 cd/m 2 |
| • |
LCD MTBF: 50,000 hrs |
|
| Power Supply |
| • |
Built-in universal AC input adapter, 100VAC~240VAC input, 12V@3.8A output |
| • |
ACE-N023T,36VDC~72VDC input, 12V@2A output |
| • |
ACE-N023C,20VDC~30VDC input, 12V@2A output |
|
| Environment |
| • |
Vibration |
| • |
5~17Hz, 0.1" double amplitude displacement |
|
17~640Hz, 1.5G acceleration peak to peak |
| • |
Shock |
|
10G acceleration peak to peak(11ms) |
| • |
Operation temperature: 0~50°C |
| • |
Relative Humidity: 5-95%, non-condensing |
|
| One Screen display Control |
Yes |
| LCD Module |
No |
Yes |
| Construction material |
Heavy-duty steel |
| PC port connector |
PS/2 Keyboard mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15 pin
Audio |
| Keyboard and Key Pad |
88 key with slim size keyboard, support English Japanese German French Italian version keyboard |
| LKM-926G [C] - [L] |
Single Input 15" LCD/Keyboard/Mouse/Speaker 1U drawer includes 1.1M length cable set. AC input |
| LKM-926G [C] - T - [L] |
Single Input 15" LCD/Keyboard/Mouse/Speaker 1U drawer includes 1.1M length cable set. 48VDC input |
| LKM-926G [C] - C - [L] |
Single Input 15" LCD/Keyboard/Mouse/Speaker 1U drawer includes 1.1M length cable set. 24VDC input |
| LKM-9268G [C] - [L] |
8 input 15" LCD/Keyboard/Mouse/Speaker 1U drawer. AC input |
| LKM-9268G [C] - T - [L] |
8 input 15" LCD/Keyboard/Mouse/Speaker 1U drawer. 48VDC input |
| LKM-9268G[C] - C - [L] |
8 input 15" LCD/Keyboard/Mouse/Speaker 1U drawer. 24VDC input |
| LKM-935G [C] - [L] |
Single Input 15" LCD/Keyboard/Mouse/Speaker 1U drawer includes 1.1M length cable set. AC input |
| LKM-935G [C] - T - [L] |
Single Input 15" LCD/Keyboard/Mouse/Speaker 1U drawer includes 1.1M length cable set. 48VDC input |
| LKM-935G [C] - C - [L] |
Single Input 15" LCD/Keyboard/Mouse/Speaker 1U drawer includes 1.1M length cable set. 24VDC input |
| LKM-9358G [C] - [L] |
8 input 15" LCD/Keyboard/Mouse/Speaker 1U drawer. AC input |
| LKM-9358G [C] - T - [L] |
8 input 15" LCD/Keyboard/Mouse/Speaker 1U drawer. 48VDC input |
| LKM-9358G[C] - C - [L] |
8 input 15" LCD/Keyboard/Mouse/Speaker 1U drawer. 24VDC input |
Note:
|
[C] Color Code - B: Black, W: White
[L] Language Code - EN:English, JP:Japanese,DE:German, FR:French, IT:Italian, TW:Traditional Chinese, SP:Spanish, RU:Russian
|
| Option: |
| LKM-CB18A-RS |
1.8M cable set; includes VGA, Keyboard, Mouse and Audio cable. |
| LKM-CB30A-RS |
3.0M cable set; includes VGA, Keyboard, Mouse and Audio cable. |
| LKM-CB50A-RS |
5.0M cable set; includes VGA, Keyboard, Mouse and Audio cable. |
|
2 x RACK Mount bracket. spcc
(P/N: 41020-009501-00-RS) |
2 x RACK Mount bracket. spcc
(P/N: 41020-009001-01-RS) |
1 x 1.8M Cable Set, Include VGA, Keyboard, Mouse, Audio Cable of LKM-935G
(P/N: LKM-CB18A-RS) |
1 x Power supply. UP04501E-12P64L.45 watt AC/DC Adapter. 90 VAC to 264 VAC, W/core
(P/N: 63SPU45E201-000-RS) |
1 x 175cm round cable power cord
(P/N: 32000-000002-RS) |
|
|
|
 |
|
|
|
