| 15"/17"/
19" Industrial Grade Multimedia TFT LCD Monitor |
|
 |

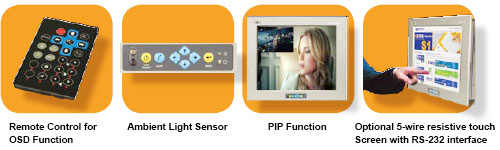

| Features |
|
5-in-1 Multi-input system supports
DVI-D, Analog VGA, Component,
Composite and S-Video interfaces
suitable for most devices currently
in use |
|
|
Picture in Picture function |
|
|
Ambient Light Sensor intelligently
adjusts brightness according to
ambient light |
|
|
Remote control for OSD function |
|
IP 65 waterproof aluminum front panel |
 Applications |
Security Surveillance Solution
The MDM series features 5-in-1 multi-input system and PIP function can benefit two monitor's effectiveness at the same time and when you are watching one source you can monitor another one. |
 |
Digital Signage Solution
The high resolution and superior image quality of the MDM series enhances a person's viewing experience and is especially appropriate for product promotion use, such as digital signage. |
 |
|
 |
| Convenience |
Superior Image Quality |
5-in-1 Multi-input System
The
new series of industrial multimedia display monitors are highlighted by their diverse video input interfaces. The 5-in-1 input interface design supports VGA,DVI-D, Component Video, Composite Video and S-Video video input interfaces, that easily connects to most PCs, embedded systems, DVD players and other devices and could adapt more appliance requirement. |
 |
Remote Control for OSD Function
OSD functions are accessed via a water proof keys on the front panel. Front panel OSD functions simplify system configuration. The remote control that comes with the monitor is equipped with its own OSD functions that allows users to configure the monitor from remote locations.
|
 |
|
DCDi Edge Processing
Eliminates the jagged edges along diagonal image lines resulting from video interpolation.
|
 |
3D Digital COMB-Filter
3D Digital comb filter ensures perfect color separation in the finest details by removing cross color and dot interference. |
 |
COMB-Response Time Compensation
MDM monitors feature fast response time compensation that affects the quality of dynamic images on the screen, resulting in motion images that are clean and crisp. |
 |
|
|
| Uniqueness |
Ambient Light Sensor
With a smart sensor that auto-detects the amount of light in the viewing environment and auto-adjusts the brightness of the screen. appliance requirement.
 |
Variable PIP window up to 640 X 480
 |
|
| Reliability |
Real Color Control
Due to panel manufacturing processes, inconsistencies may arise in an LCDs image quality. To ensure each panel produced conforms to the highest industry standards for consistent image quality, each panel is tested by our unique color correction system based on gamma curve, gray balance, and white balance, and white balance measurement standards. IEI is proud to be the only manufacturer in the IPC industry to completely color correct every panel produced. |

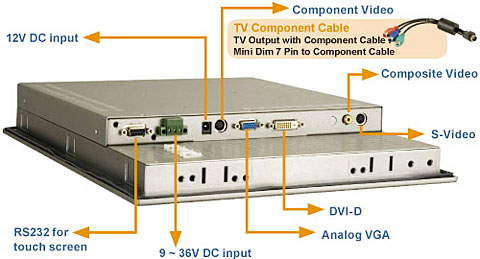

| I/O PORT |
 |
| Model |
MDM-150S |
MDM-170S |
MDM-190S |
| LCD Size |
15" |
17" |
19" |
| Input Interface |
Analog VGA \ DVI-D \ Component Video (Y/Cr/ Cb) \
Composite \ S-Video |
| Resolution (H/V) |
1024X768 |
1280X1024 |
1280X1024 |
| Luminance(cd/m2) |
350 |
300 |
300 |
| Contrast Ratio |
400:1 |
500:1 |
700:1 |
| Display Color |
262K |
16.2M |
16.2M |
| Pixel pitch (mm) |
0.297 |
0.264 |
0.294 |
| View Angle (H/V) |
120/100 |
140/130 |
140/130 |
| Lamp Life Time |
50000hrs |
| Front Frame |
Aluminum |
| Chassis |
Heavy-duty steel |
| Input Voltage |
12VDC or 9~36VDC(optional) |
| OSD function |
Ambient Light Sensor/Display control/Image Control/ PIP Control/
PIP color Control/System control/OSD
configuration |
| Mounting |
Wall/Panel/Rack/Arm(100X100)/Stand |
| Dimension (WxHxD) |
410 x 309 x 65.1 |
452.0 x 356.0 x 65.2 |
482 x 399 x 73 |
| Operation Temperature |
0 ~ 50°C |
| IP Level |
IP65 Compliant |
| MDM-150S |
15" LCD Monitor with VGA, DVI-D, S video, composite, component Video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color,RoHS |
| MDM-150MS |
15" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in,
RoHS |
| MDM-150S/T-R |
15" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with touch scree,
RoHS |
| MDM-150MS/T-R |
15" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in and
touch screen, RoHS |
| MDM-150S-USB/T-R |
15" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with USB touch
screen, RoHS |
| MDM-150MS-USB/T-R |
15" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in and
USB touch screen, RoHS |
| MDM-170S |
17" LCD Monitor with VGA, DVI-D, S video, composite, component Video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color,RoHS |
| MDM-170MS |
17" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in,
RoHS |
| MDM-170S/T-R |
17" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with touch scree,
RoHS |
| MDM-170MS/T-R |
17" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in
and touch screen, RoHS |
| MDM-170S-USB/T-R |
17" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with USB touch
screen, RoHS |
| MDM-170MS-USB/T-R |
17" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in
and USB touch screen, RoHS |
| MDM-190S |
19" LCD Monitor with VGA, DVI-D, S video, composite, component Video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color,RoHS |
| MDM-190MS |
19" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in,
RoHS |
| MDM-190S/T-R |
19" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with touch scree,
RoHS |
| MDM-190MS/T-R |
19" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in and
touch screen, RoHS |
| MDM-190S-USB/T-R |
19" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with USB touch
screen, RoHS |
| MDM-190MS-USB/T-R |
19" LCD Monitor with VGA, DVI-D, S video, composite, component video (Y / Cr / Cb) inputs, integrated
auto-dimming and remote control, aluminum front panel with silver color, equipped with 9~36V DC in and
USB touch screen, RoHS |
|
|
 |
|
|
