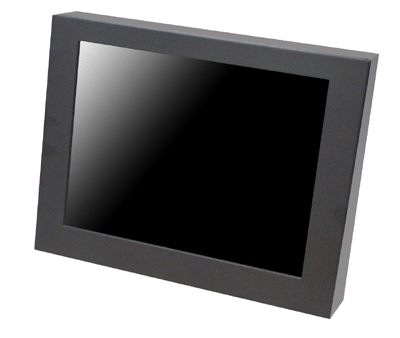

SRM-152 15" Sunlight Readable 800 cd/m2 / 1600 cd/m2 High Brightness Display Monitor Features Very High Brightness High Contrast Ratio Short Response Time Sunlight Readable Wide Viewing Angle Reliable Lamp Module Excellent Power Management Optional Touch Panel, Light Sensor ,Temper Glass Specifications LCD Display 15" TFT Active Matrix Panel Brightness 800 cd/m2 / 1600 cd/m2 Pixel Pitch (mm) 0.297(H) x 0.297(V) Maximum Resolution 1024 x 768 (XGA) Contrast Ratio 400 : 1 Display Area 304.128 x 228.096 mm Response Time (Typ.) 16ms (Typ.) Display Colors 262,144 colors (6 bit for R,G,B) Viewing Angle +70X~-70X(H), +50X~-70X(V) Video RGB Analog 0.7V Peak to Peak Sync LVDS Signal Connector 15 Pin D-sub F/ R Control Button Power Switch, Menu, Select (+,-), Auto OSD Menu Brightness, Contrast, H/V Position, Color, Phase, Clock, Management S-video / AV connector Optional Power Comsumption 56.5W Dimensions 389 x 317 x 51.1 mm Weight (Net) 3.92 kg Ordering Info SRM-152 15" Sunlight Readable 800 cd/m2 / 1600 cd/m2 High Brightness Display Monitor
