NANO-6613 Embedded Little Board - Attro Industrial Computer

NANO-6613

EPIC Form Factor with Intel® Pentium® M/ Celeron® M FSB 533/400MHz CPU, CRT, LVDS/TV-Out, SATA, Dual GbE, USB 2.0, COM & Audio

Features
	Intel® Pentium® M/ Celeron® M CPU support up to FSB 400/533MHz
	CRT VGA integrated in SIS 661CX; Dual 24 bit LVDS/TV-Out support by SIS 302LV
	DDR 200-pin SO-DIMM sockets of 400/333MHz support up to 1GB
	Support PCI-104 extension
	Dual GbE, USB 2.0, Multi-COM, Audio and SATA integrated

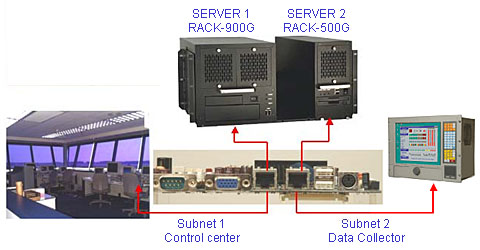

Dual GbE Function

	Benefit NANO-6613 is Intel Pentium M solution with FSB 533 performance and Dual GbE design for multi network embedded applications such as redundant network or multi-subnet working environment.

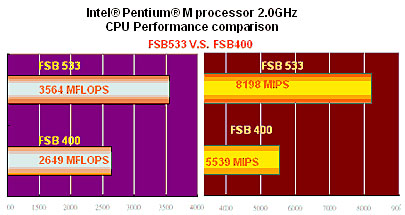

Intel® Pentium® M FSB 533MHz with DDR memory

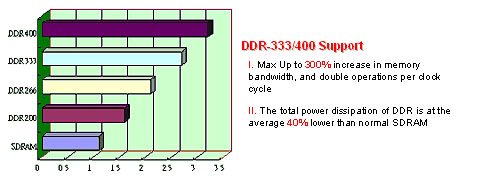

	NANO-6613 with FSB533 Intel Pentium M enables maximum Pentium M performance powered applications with high integrated and unique up-to-date features like USB 2.0 DDR-400 memory and SATA RAID function!

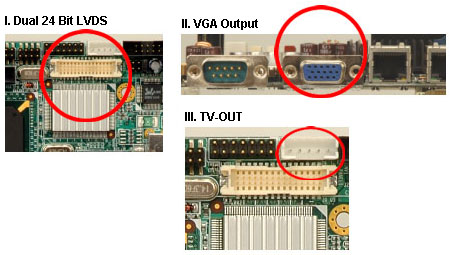

Flexibility of Dual Display

	SiS 302LV which is an accompany chip of SiS VGA chip, integrates a. A NTSC/PAL video encoder for TV display. b. A dual link LVDS transmitter with bi-linear scaling capability for TFT LCD panel display.

Feature 1 Applications - HMI, FA, Instrument, IPC - Marine, GPS, Transportation - Financial, Retail, Kiosk solution	Feature 1 Applications The output display combination can be one of the three configurations: (1) Primary CRT + TV OUT (2) Primary CRT + LVDS (3) TV OUT + LVDS

Specification
CPU	Intel ® Pentium ® M/ Celeron ® M FSB 533/400MHz processor
System Chipset	SiS 661CX + SiS 964
BIOS	AMI BIOS Label
System Memory	1x DDR 200-pin SO-DIMM sockets of 400/333 MHz up to 1GB
Ethernet	Dual RTL8110SC for GbE
I/O	2 x SATA-150 6 x USB 2.0 1 x CFII 1 x LPT 3 x RS-232 1 x RS-232/422/485 1 x PS/2 Mini DIMM for KB/MS 1 x IDE
Expansion	1 x PCI-104
Audio	AC'97 2.3 Realtek ALC655
IrDA	1x IrDA by pin header
Digital I/O	4 input / 4 output by super I/O
Super I/O	Winbond 83697HG
Display	CRT integrated in SiS 661CX LVDS/TV-Out : Dual 24 bit LVDS/TV-Out support by SiS 302LV
Watchdog Timer	Software programmable 1-255 sec. by super I/O
Power Supply	12V only, AT/ATX support
Power Consumption	+12V@3.78A, 5Vsb@0.35A (Pentium-M 2.1GHz, DDR333 SO-DIMM) --3D MARK
Temperature	Operation: 0 ~ 60° C (32 ~ 140° F)
Humidity	Operation: 5% ~ 95% non-condensing
Dimension	115 mm x 165 mm
Weight	NW: 800g, GW: 280g

Packing List

1 x NANO-6613 Single Board Computer	2 x RS-232 Cable (P/N: 32200-000049-RS)
1 x IDE Flat Cable (P/N: 32200-000009-RS)	1 x Power Cable (P/N: 32100-087100-RS)
1 x KB/PS2 Mouse Y Cable (P/N: 32000-000138-RS)	1 x Mini Jumper Pack
1 x Audio Cable (P/N: 32000-072100-RS)	1 x Utility CD
2 x SATA Cable (P/N: 32000-062800-RS)	1 x QIG (Quick Installation Guide)
1 x SATA Power Cable (P/N: 32100-088600-RS)

Ordering Info

NANO-6613-R10

EPIC Form Factor with Intel ® Pentium ® M/ Celeron ® M FSB 400/533 MHz CPU, CRT, LVDS/TV-Out, SATA, DualGbE, USB 2.0, COM & Audio

CF-479B-RS

CPU Cooler

32000-070300-RS

USB Cable

32200-026500-RS

RS-232/422/485 Cable

32200-015100-RS

LPT Cable
