| Specification |
| CPU |

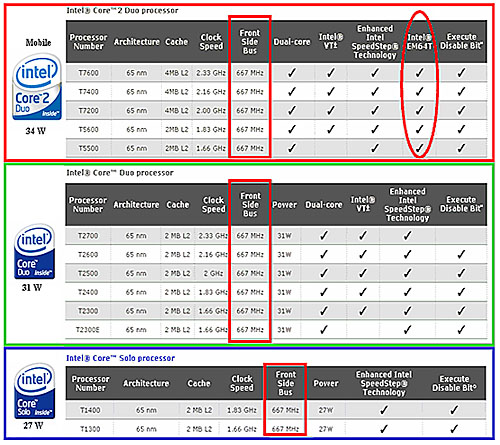

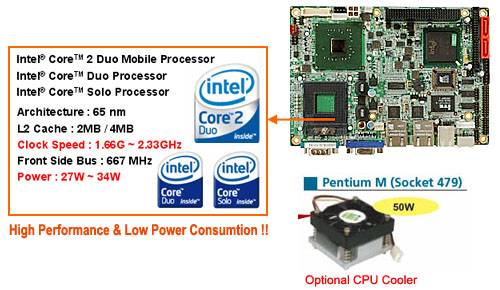

Socket 479 Intel® Core™ 2 Duo, Core™ Duo/Solo with 667MHz FSB |
| System
Chipset |
Intel® 945GM + ICH7M |
| BIOS |
AMI BIOS |
| System
Memory |
1 x 200-pin SO-DIMM DDR2 400/533MHz up to 1GB |
| Ethernet |
Dual PCIe GbE Broadcom BCM5787 |
| I/O |
6 x USB 2.0
2 x SATA II
1 x IDE
3 x RS-232
1 x RS- 232/422/485
1 x PS/2 for KB/MS
1 x LPT, 1 x CF Type II
|

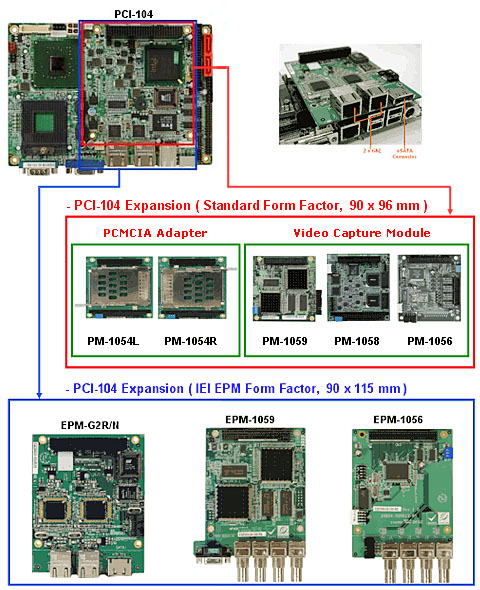

Expansion
|
1 x PCI-104

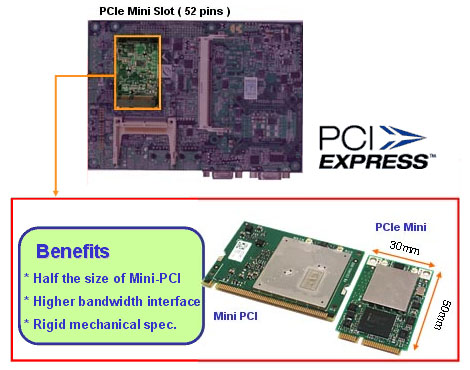

1 x PCIe Mini Slot |
| Super I/O |
IT8712F |
| Digital I/O |
8-bit digital I/O, 4 input/ 4 output by super I/O |
Audio
|
7.1/5.1 channel audio with AC-KIT (Optional) |

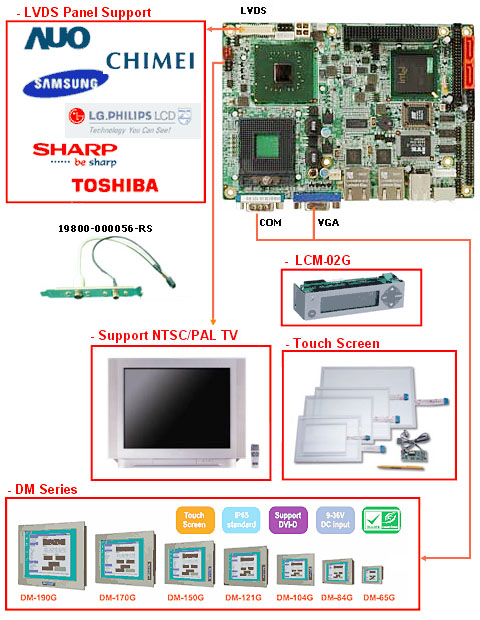

Display
|
Integrated in Intel® 945GM to support CRT
TV-Out: S-Video and composite output
LVDS: Dual channel 18-bit LVDS LCD panel |
| Watchdog Timer |
Software programmable 1-255 sec. by super I/O |
| Power Supply |
12V only, AT/ATX support |
| Power Consumption |
+12V @3.01A (Intel® Core™ 2 Duo 2.0G, 1GB DDR2 533MHz) |
| Temperature |
Operation: 0 ~ 60° C (32 ~ 140° F) |
| Humidity |
Operation: 5% ~ 95% non-condensing |
| Dimension |
165 (L) mm x 115 (W) mm |
| Weight |
GW: 800 g; NW: 260 g |
| NANO-9452-R10 |
EPIC SBC, Intel® Core™ Duo FSB 667MHz with CRT/LCD, Dual PCIe GbE and SATA II |
| AC-KIT-883HD |
7.1 Channel HD Audio Kit with Realtek ALC883 Support Dual Audio Streams |
| AC-KIT08R |
5.1 Channel Audio Kit with Realtek ALC655 |

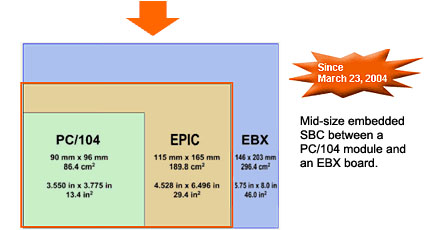

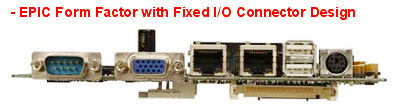

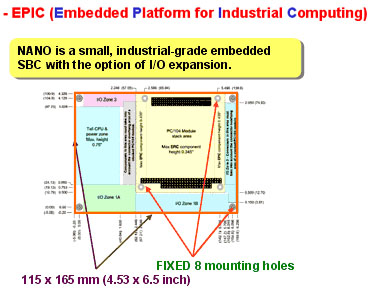

EPIC Form Factor Advantage
