NANO-GX
EPIC SBC with AMD® LX800 CPU, Audio, CRT, LCD/LVDS, SATA and RAID 0, 1, JBOD Function Support
Features Specifications Dimension Ordering Info Datasheet

Features
EPIC form factor, latest AMD® GX466 processor embedded board with RoHS compliant
DDR 266MHz, maximum memory supported 512MB
24-bit TTL integrated in AMD® GX466 18-bit LVDS
Complete I/O support with SATA, IDE, CFII, PC/104+ and USB 2.0


NANO-GX Product Highlight

On-board AMD® Geode GX CPU
The NANO-GX is designed for extreme low power and compact applications. The power consumption of the GX466 processor is only 0.9W . The processor supports DDR based SO-DIMMs and can be inserted in the on-board 200-pin SO-DIMM socket that accepts up to 512 MB.

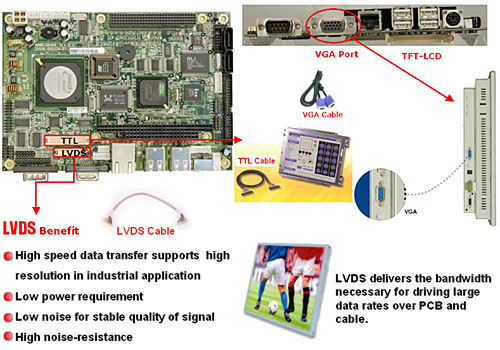

RAID Function and TTL/LVDS Graphic Output
To fulfill the storage system requirement, the NANO-GX provides RAID functions for faster and safer performance. It also supports multiple graphic output interface such as VGA/TTL and LVDS for versatile display conditions.

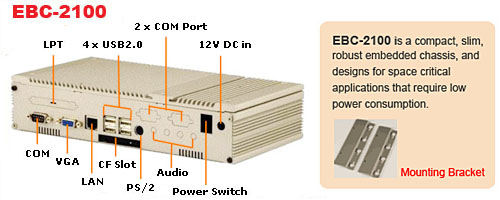

Integrated Embedded System Solution
We provides the EBC-2100 embedded chassis, which is suitable for all EPIC NANO SBCs, and the chassis features with slim and robust design with COM, VGA, USB2.0 and audio interface.

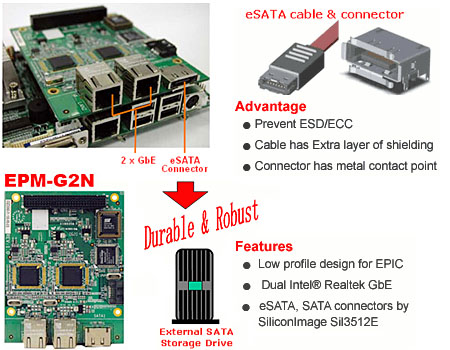

Expansion Capability Upgrade with IEI® EPM-G2N
The EPM-G2N on PCI-104 interface provides two LANs and one eSATA port for expansion. It is suitable for all IEI® NANO-series SBCs.

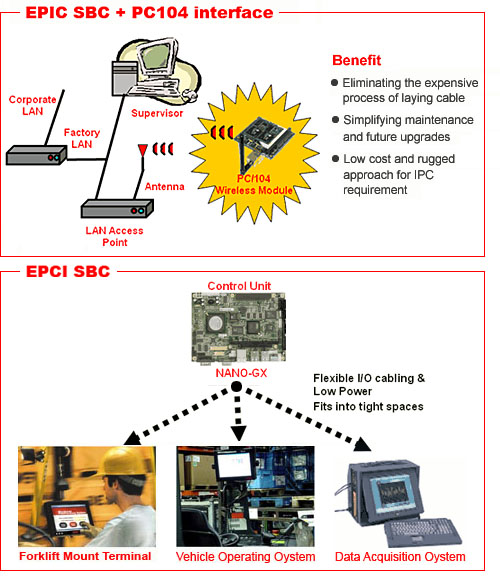

Flexible EPIC Standard with PC/104-Plus for Versatile Application
The flexibility of the EPIC standard enabling mounting in various positions permits multiple solutions for industrial applications. Its PC/104-Plus expansion scheme helps EPIC meet the technical challenges.

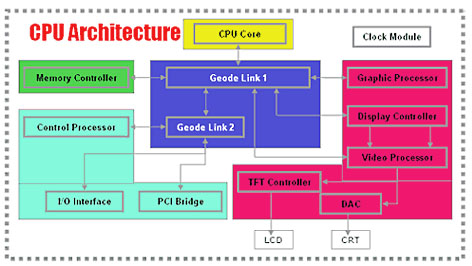

AMD® GX - Extreme Low Power Solution



Instruction
&
Highlights 		CPU Core 150nm Process / 1.5V Core Voltage / 333~400MHz CPU Frequency
BGD368 (CRT or TFT Pin-out) / BGU396 (CRT/TFT Pin-out)
32KB of Level 1 Cache , 16KB Instruction and 16KB Data
Support Intel® MMX & AMD 3DNOW! Instruction Sets
Memory Controller 64-bit Wide SDRAM Bus Operating Frequency: 111MHz
Geode Link High-Bandwidth Interface Unite to Handle up to 6Gbps of Data Transmission
Video Processor Support 1600 x 1200 / 1280 x 1024 dpi Resolution@85Hz
Support TFT/CRT Output
PCI Bridge 32-bit/ 66MHz PCI Interface

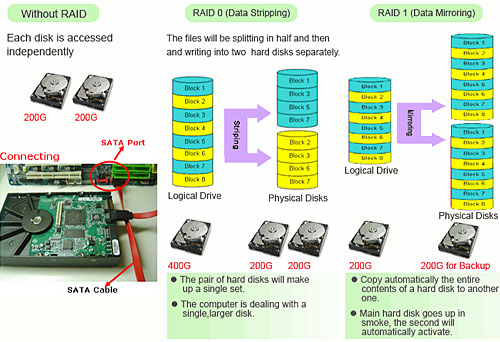

RAID for Faster and Safer Storage System
RAID System consists of a set of two or more hard disks for two purposes: Provide a faster disk system, i.e. speed up disk data loading through data stripping (RAID 0) and set up a safer disk system by mirroring (RAID 1). These two techniques may be used either separately or jointly.
Multiple Graphic Output Interfaces

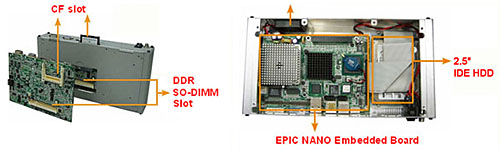

Integrated Embedded Solution Ready

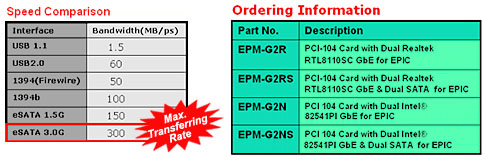

EPM-G2N eSATA Card



EPIC Form Factor with PC/104
Specification
CPU AMD® GX466 FSB 333MHz
System Chipset AMD® GX466 + CS5536
BIOS AMI BIOS
System Memory 1 x 200-pin SO-DIMM DDR 266MHz up to 512MB
Ethernet RTL8100C for 10/100Mbps
I/O

4 x USB 2.0
2 x SATA-150 with ALI M5283 RAID 0,1 function support
1 x LPT
1 x CF Type 2
6 x RS-232
1 x RS-422/485
1 x IDE
1 x PS/2 for KB/MS

Expansion
 1 x PC/104+ (PCI+ISA BUS)
Audio Realtek ALC203 with AC'97 Codec
IrDA 1x IrDA by pin header
Digital I/O
 8-bit digital I/O, 4 input/ 4 output by super I/O
Super I/O W83627EHG
Display
CRT integrated in AMD® GX466
24-bit TTL integrated in AMD® GX466
18-bit single channel LVDS
Watchdog Timer Software programmable 1-255 sec. by super I/O
Power Supply 12V only, AT/ATX support
Power Consumption +12V@0.83A
(AMD® GX466 with DDR 400MHz, 512MB RAM-HCT)
Temperature Operation: 0 ~ 60° C (32 ~ 140° F)
Humidity Operation: 5% ~ 95% non-condensing
Dimension 115 mm x 165 mm
Weight GW: 950 g; NW: 350 g
Packing List
1 x NANO-GX Single Board Computer 1 x Audio Cable (P/N: 32000-072100-RS)
1 x ATA33 Flat Cable (P/N: 32200-000009-RS) 1 x Power Cable (P/N: 32100-087100-RS)
2 x SATA Cable (P/N: 32000-062800-RS) 1 x Mini Jumper Pack
1 x SATA Power Cable (P/N: 32100-088600-RS) 1 x Utility CD
Ordering Info
NANO-GX-466-R10 EPIC SBC with AMD® GX466 333MHz CPU, CRT/LCD, LAN, USB2.0 and Audio
32000-070300-RS USB Cable
32200-015100-RS LPT Cable
32200-026500-RS RS-232/422/485 Cable
