3.5” SBC with AMD® Geode LX800 Processor, 8 x COM, DDR 400, VGA/LVDS/TTL Display Interfaces, PC/104, 4 x USB 2.0 & Embedded OS Support
Features Specifications Ordering Info Datasheet

3.5” form factor with AMD® LX800 CPU
DDR 400MHz DIMM Socket up to 1GB
VGA, 24-bit TTL, 18-bit LVDS display interface
7 x COM and 1 x RS-232/422/485
CPU AMD® Geode LX-800 500MHz
System Chipset AMD® LX800 + AMDR CS5536
System Memory 1 x SO-DIMM DDR 400MHz supported up to 1GB
Ethernet RTL8100C for 10/100Mbps

7 x RS-232,
1 x RS232/422/485,
4 x USB 2.0, 1 x IDE,
1 x CF Type II

Expansion 1 x PC/104
Super I/O N/A for legecy free
Audio AC'97 Codec Realtek ALC203
Display CRT integrated in AMD® LX800, 24-bit TTL integrated in AMD® LX800, 18-bit LVDS support by buffer
Watchdog Timer ported by Fintek F81216DG
Power Supply 5V only, AT/ATX support (12V for LCD, COM 1 output)
Power Consumption 5V@1.33A (AMD® LX800 with DDR 333/ 512MB)
Temperature Operation: 0 ~ 60° C (32 ~ 140° F)
Humidity Operation: 5% ~ 95% non-condensing
Dimensions 102 (L) mm x 146 (W) mm
Weight GW: 670 g; NW: 230 g
Ordering Info
WAFER-LX2-R800-R10 3.5" SBC with AMD® LX800 Processor, Audio, CRT, TTL/LVDS, 4x USB 2.0, 7 x RS-232 and 1 x RS-422/485
WAFER-LX2-WINXPE 3.5" SBC with AMD® LX800 Processor, DDR 256Mhz, CF 1GB and Windows XP Embedded image
WAFER-LX2-CENET050 3.5" SBC with AMD® LX800 Processor, DDR 256Mhz, IFM 32MB and Windows CE5.0 image

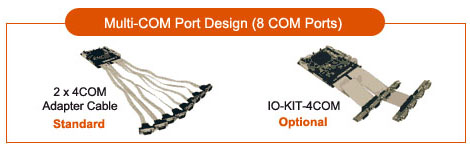

IO-KIT-4COM-R10 Multi COM Ports Adaptor Board for WAFER-LX2

Packing List
1 x WAFER-LX2 Single Board Computer 1 x Mini Jumper Pack
1 x IDE Flat Cable 44p/44p (P/N: 32200-000009-RS) 1 x Utility CD
2 x 4COM Adapter Cable (P/N: 32200- 025401-RS) 1 x QIG (Quick Installation Guide)
1 x Audio Cable (P/N: 32000-072100- RS)
