KINO Series MINI-ITX Pentium® 4/
Pentium® D Embedded System |
|
|
| Features |
 |
RoHS compliant design
|
 |
| |
Embedded system with IEI KINO series MINI-ITX form factor MB |
| |
Intel® Pentium® 4 / Pentium® D processor inside |
|
2 x 6cm ball bearing system fan Supports |
|
1x 2.5” HDD Optional slim type CD-ROM |
 |
| Model No. |
ECK-3699GE |
ECK-3699GF |
ECK-3699GH |
| Mainboard |
KINO-9454 |
KINO-9452 |
KINO-6614 |
| CPU |
LGA 775 Intel® Pentium 4/ Pentium® D with 533/800/
1066MHZ FSB |
Socket 479 Intel® Core Duo/Solo with 667MHz FSB |
LGA 775 Intel® Pentium® 4/ Celeron® D with 533/800Mbz FSB |
| System Chipset |
Intel® 945G+ICH7 |
Intel® 945GM+ICH7M |
SiS661CX + SiS966 |
| System Memory |
2x 240pin dual channel DDRII 400/533/667 MHz DIMM socket support up to 4GB |
2x 240pin dual channel DDRII 400/533/667 MHz DIMM socket support up to 2GB |
2 x 184pin DDR 400/333MHz up to 2GB |
| Ethernet |
Dual Broadcom BCM5787 PCI-e GbE |
Dual Broadcom BCM5787 PCI-e GbE |
Dual Broadcom BCM5787 PCI-e GbE |
| Display |
Analog CRT integrated in Intel® 945G |
Integrated in Intel® 945GM support composite, S-Video,
RCA, HDTV-out
and CRT |
CRT integrated in SiS661CX |
| USB |
2x at front and 4x at rear, USB 2.0 |
2x at front and 4x at rear, USB 2.0 |
2x at front and 4x at rear, USB 2.0 |
| VGA / Keyboard / Mouse |
1 x DB-15 VGA connector
2 x PS/2 for keyboard
& mouse |
1 x DB-15 VGA connector
1x 4pin S-video connector
2 x PS/2 for keyboard
& mouse |
1 x DB-15 VGA connector
2 x PS/2 for keyboard
& mouse |
| Audio |
Line-in/ Line-out |
Mic-in / Line-in / 7.1 channel Line-out |
Line-in/ Line-out |
| Serial Port |
3 x RS-232 |
1 x RS-232 |
1 x RS-232 |
| Storage |
2.5” HDD (Optional) |
optional 2.5” HDD+Slim CD-ROM module |
2.5” HDD (Optional) |
| Chassis Construction |
Front bezel: acrylic Chassis: heavy duty metal |
| System Cooling |
2 x 6010 ball bearing fan |
| Power Supply |
Internal DC-to-DC power converter,
input voltage: 19VDC External power adaptor,
input voltage: 100VAC ~ 240VAC @50~60Hz, 150W |
| Operating Shock |
3G acceleration peak to peak(11ms) |
| Operation Vibration |
MIL-STD-810F 514.5C-1 |
| Operation Temperature |
0~45°C |
| Operation Humidity |
10% ~ 90% |
| Color |
Acrylic front bezel: transparent , Metel body: sliver grey |
Weight
(Net/Gross) |
2.8kg / 4.2kg |
Dimensions
(DxWxH) |
258mm x 210mm x 65mm |
| EMC |
meet CE, FCC Class A |
|

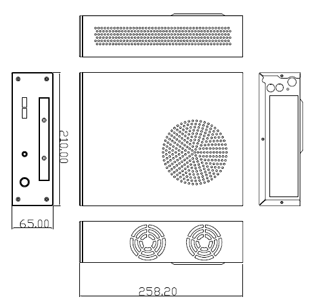

Dimensions (Unit:mm) |

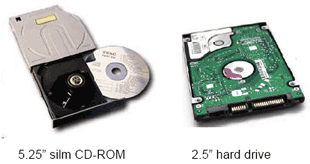

Optional Items  |

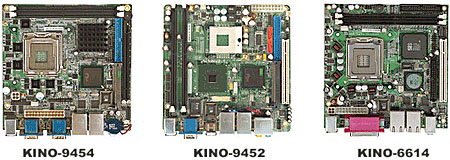

| KINO Boards used in ECK-3699G |
| ECK-3699GE |
Embedded system with KINO-9454, LGA 775 for Intel® Pentium 4/Pentium® D support to 533/800 MHZ or 1066 MHz , 2 x 6010 system fan, 19VDC input, RoHS |
| ECK-3699GF |
Embedded system with KINO-9452, socket 479 Intel® Core Duo/Solo with 667Mhz FSB, 2 x 6010 system fan, 19VDC input , RoHS |
| ECK-3699GH |
Embedded system with KINO-6614, LGA 775 Intel® Pentium® 4/Celeron® D support up to 800MHz FSB, 2 x 6010 system fan, 19VDC input , RoHS |
| Item |
Part No. |
Description |
| Slim CD-ROM |
73100-SR244W1B-RS |
Slim type 24x CD-ROM, IDE, black, RoHS |
| 40GB 2.5" IDE HDD |
72200-MHV2040AT-RS |
Fujitsu 2.5" HDD, ULTRA DMA, 40GB, 4200RPM, RoHS |
| 40GB 2.5" SATA HDD |
72000-HTS541040G9SA00-RS |
HITACHI 2.5" SATA 150 HDD, 40GB, 5400RPN, RoHS |
| 1 x QIG |
1 x (20+4)pin power cable |
| 1 x driver CD |
1 x power cord |
| 1 x optical drive converter module |
1 x screw set |
| 1 x SATA cable |
1 x power adaptor |
| 1 x 44pin IDE cable |
1 x CPU cooler |
| 1 x 40pin IDE cable |
1 x manual CD |
|
|
 |
|
|
|
