PT631-IPM

Intel® Q57 ATX Board



Datasheet
Features
Intel® Core™ i7-860 / Core™ i5-750 / Core™ i5-660 / Core™ i3-540 / Pentium® G6950,
Intel Q57, 4 DDR3 1066/1333 DIMM up to 16GB, Integrated Intel Graphics Processing Unit, VGA, DVI-I(DVI-D signal only), 4 GLAN, AMT, 1 PCI-Ex16, 1 PCI-Ex4, 4 PCI, 8 USB, 4 COM,
6 SATA, RAID
Specifications
CPU Socket LGA1156
CPU - Intel® CoreTM i7-860 2.80GHz/8M
- Intel® CoreTM i5-750 2.66GHz/8M
- Intel® CoreTM i5-660 3.33GHz/4M
- Intel® CoreTM i3-540 3.06GHz/4M
- Intel® Pentium® G6950 2.80GHz/3M
Chipset Intel® Q57 (Ibex Peak)
BIOS • AMI BIOS
• 8Mbyte SPI flash memory
System Memory

• Four 240-pin DDR3 DIMM sockets
• Supports DDR3 1066/1333MHz
• Supports maximum memory bandwidth of 21GB/s in
  dual-channel mode when using DDR3 1333MHz
• Supports dual channel (128-bit wide) memory interface
• Supports up to 16GB system memory

Expansion Slots
• 1 PCI Express x16 slot (PCIE 2.0)
• 1 PCI Express x4 slot (PCIEX4 2.0)
• 4 PCI slots (PCI 2.3)
Onboard Graphics Features

• Intel Graphics Processing Unit
- Supports 3D, 2D and video capabilities

Onboard Audio Features

• Realtek ALC262 2-channel High Definition Audio
• Two 24-bit stereo DACs and three 20-bit stereo ADCs

Onboard LAN Features

• 3 Intel W82574L PCI Express Gigabit controllers
• 1 Intel W82578DM PHY (AMT 6.0)
• Supports 10Mbps, 100Mbps and 1Gbps data transmission
• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps)   compliant

Serial ATA Interface • SATA speed up to 3Gb/s (SATA 2.0)
• Supports 6 SATA (Serial ATA) interfaces which are compliant   with SATA 1.0 specification
• Supports RAID 0, 1, 5 and 10
Intel Active Management Technology (AMT)
• Supports iAMT6.0
• Out-of-band system access
• Remote troubleshooting and recovery
• Hardware-based agent presence checking
• Proactive alerting
• Remote hardware and software asset tracking
Trusted Platform Module (TPM) • Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and   password protection
Rear Panel I/O Ports • 2 DB-9 RS232/422/485 serial ports
• 1 DB-15 VGA port
• 1 DVI-I port (DVI-D signal only)
• 4 RJ45 LAN ports
• 2 USB 2.0/1.1 ports
I/O Connectors

• 3 connectors for 6 additional external USB 2.0/1.1 ports
• 2 connectors for 2 external RS232/422/485 serial ports
• 1 connector for PS/2 keyboard/mouse port
• 2 DIO connectors
• 1 audio connector
• 1 front audio connector
• 6 Serial ATA connectors
• 1 IDE connector
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis open connector
• 1 front panel connector
• 3 fan connectors

Energy Efficient Desigh • Supports ACPI specification and OS Directed Power   Management
• Supports ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
   - Wake-On-PS/2 Keyboard/Mouse
   - Wake-On-USB Keyboard/Mouse
   - Wake-On-LAN
   - RTC timer to power-on the system
• System power management supported
• Soft Power supported - ACPI v3.0 specification
• AC power failure recovery
• Watchdog timer function
Damage Free Intelligence • Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/+5V/+12V/SM/+3.3V/VBAT voltages and   failure alarm
• Monitors CPU fan / system fan 1 / system fan 2 speed and   failure alarm
• Read back capability that displays temperature, voltage and   fan speed
Temperature 0°C to 60°C
Humidity 10%~90%
PCB • ATX form factor
• 30.5cm (12") x 24.4cm (9.6")

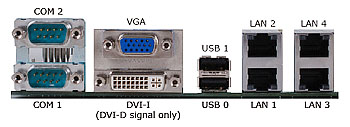

Rear Connectors
