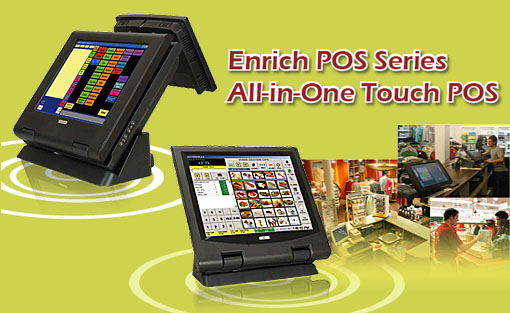

EP-162/EP-165

12"/15" All-in-One Touch POS System

Features
	Second displays support including digital signage, monitor and VFD display
	Full I/O interface for peripherals
	Smart mechanical design
	Dust-proof CPU Protection
	Heat-dissipated Aluminum Chassis
	IP-64 Compliant Front Panel
	Wireless Communication Enabled

EP Series Product Line

CPU	Chipset Platform	LCD Size	Model
Celeron® M	910GML	12"	EP-162-910
Celeron® M	910GML	15"	EP-165-910

CPU	Chipset Platform	LCD Size	Model
Celeron® M / Core™2 Duo (Pentium® M/ Core™ Duo/ Core™2 Duo Supported)	945GME	12"	EP-162-945
	945GME	15"	EP-165-945

Specifications

Fanless

		EP-162-910	EP-162-945	EP-165-910	EP-165-945
LCD		12.1"	12.1"	15"	15"
Memory		Intel® Celeron® M 1GHz / 512KB L2 cache	Intel® Celeron® M1.8GHz/ 1MB L2 cache Intel® CoreTM Duo 1.66GHz/ 2MB L2 cache	Intel® Celeron® M 1GHz / 512KB L2 cache	Intel® Celeron® M1.8GHz/ 1MB L2 cache Intel® CoreTM Duo 1.66GHz/ 2MB L2 cache
Max Resolution		1024 x 768	1024 x 768	1024 x 768	1024 x 768
Brightness		400	400	350	350
Contrast Ratio		500:1	500:1	700:1	700:1
LCD Color		262K	262K	262K	262K
Pixel Pitch (mm)		0.24(H) x 0.24(V)	0.24(H) x 0.24(V)	0.297(H) x 0.297(V)	0.297(H) x 0.297(V)
Viewing Angle (H-V)		120/100	120/100	140/125	140/125
Backlight MTBF		50000 hrs	50000 hrs	50000 hrs	50000 hrs
Touch Screen		Resistive Type 5-Wire, Support RS-232 interface. Capacitive Type supported by order
HDD		1 x 2.5" SATA HDD Bay
SSD		1 x CF Type II slot
I/O Interface	Cash Drawer port	2 x 12V/ 24V RJ-11 connectors for cash drawer
	LPT	1 x DB-25
	LAN	1 x giga LAN
	Wireless	802.11 a/b/g with PIFA antenna, PCIe interface
	Audio	3W + 3W amp. audio jack on the bottom
	Power Switch	1 x 12V/ 24V 5 pin DC-IN Power Jack
		1 x Power Switch with LED on Front Panel
		1 x AT / ATX Switch
Power	Adapter	252W Power Adapter (ACE-D825A-H-RS)
	Input	12V/24V DC in
	Output	12VDC at 15A, 24VDC at 8A
	Consumption	50W	88W	50W	88W
Mounting		Main display: STAND & VESA 100 Wall Mounting Second display: VESA 75 mounting
Construction		ABS + PC Plastic front Panel Aluminum Alloy Chassis
Color		Black
Operation Temperature (°C)		0~40°C
IP Level		IP64 (Front Panel)
Safety & EMI		CE / EMC / FCC / CB / UL
Dimensions (WxHxD)		327 x 294 x 219 mm		387 x 321x 221 mm
Net Weight		6.84 Kg		8.34 Kg

Ordering Info

EP-162 Series

EP-162-910-10G/WT-R/1GB

12.1" 400cd/m2 XGA POS PC with Celeron® M 1.0GHz 512K cache CPU, 1GB DDR2 RAM, 802.11 a/b/g wireless module, Resistive touch screen, RoHS

EP-162-945-CM440/WT-R/1GB

12.1" 400cd/m2 XGA POS PC with Celeron® M 440 1.8GHz CPU, 1GB DDR2 RAM, 802.11 a/b/g wireless module, Resistive touch screen, RoHS

EP-162-945-T2300E/WT-R/1GB

12" 400cd/m2 XGA POS PC with Core™ Duo T2300E 1.66GHz CPU, 1GB DDR2 RAM, 802.11 a/b/g wireless module, touch screen, RoHS

EP-165 Series

EP-165-910-10G/WT-R/1GB

15" 350cd/m2 XGA POS PC with Celeron® M 1.0GHz 512K cache CPU, 1GB DDR2 RAM, 802.11 a/b/g wireless module, Resistive touch screen, RoHS

EP-165-945-CM440/WT-R/1GB

15" 350cd/m2 XGA POS PC with Celeron® M 440 1.8GHz CPU, 1GB DDR2 RAM, 802.11 a/b/g wireless module, Resistive touch screen, RoHS

EP-165-945-T2300E/WT-R/1GB

15" 350cd/m2 XGA POS PC with Core™ Duo T2300E 1.66GHz CPU, 1GB DDR2 RAM, 802.11 a/b/g wireless module, touch screen, RoHS
