XScaleR PXA270 520MHz processor
2 MB boot flash
128 MB SDRAM
128 MB CompactFlash(38MB reserved for WindowsR CE 5.0, 90MB for user data and programs)
Battery-backup RTC
Watch Dog Timer
Display
Type: Color Active Matrix TFT
Size: 5.6��
Resolution: 320 x 234, 64K color graphics
Brightness: 500 cd/m2
Input: 4-wire resistive touch panel

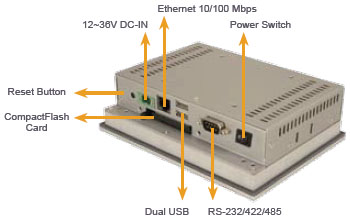

I/O
and Communication
Ethernet: 1 x 10/100 Mbps
Serial Port: 1 x RS-232/422/485
2 x USB Host 2.0
Power
Power Supply: Support 12~36V DC-IN
Power Consumption: 15W
Power Adapter (Optional) : 24V, 25W AC-DC power adapter
Environmental
Operation Temperature: 0�XC-50�XC
Humidity: 5%RH to 95%RH (non-condensing)
Vibration: 5Hz~17Hz, 0.1�� double amplitude displacement;17Hz~640Hz, 1.5G acceleration peak to peak.
Shock: 10G acceleration peak to peak
IP 65 compliant front panel
Color
Aluminum front, Silver color
Ordering
Info
IOVU-560-R10
5.6 " TFT, QVGA, 64K color, touch Open HMI with built-in WindowsR CE 5.0 license
Optional
63000-UP0251Q24T51G-RS
24V/25W AC-DC Power Adapter; 90~264Vac input
WK-075MS-R10
Wall Mount Kits
ARM-11-RS
LCD Monitor Arm Kits
STAND-100-RS
LCD Monitor Stand Kits
Packing List
1*IOVU-560
1*Null modem cable
1*Touch pen
1*Screw kit
1*Utility CD including SDK, utilities, and technical documents
