XScaleR PXA270 520MHz processor
2 MB boot flash
128 MB SDRAM
128 MB Compact Flash (38MB reserved for WindowsR CE 5.0, 90MB for user data and programs)
Battery-backup RTC
Watch Dog Timer
Reset button
Display
Type: Color Active Matrix TFT
Size: 8.4"
Resolution: 800 x 600, 64K color graphics
Brightness : 450 cd/m2
Input : 4-wired resistive touch panel

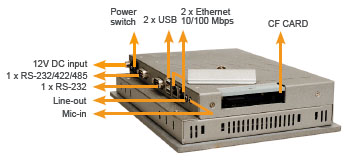

I/O
and Communication
Ethernet: 2 x 10/100 Mbps
Serial port: 1 x RS-232,1 x RS-232/422/485
USB: 2 x USB host 1.1
Audio: 1 x Mic-in, 1 x Line-out
Power
Power requirement: 12VDC
Power consumption: 15W
Power adapter: -25W, -Input: 90~264VAC@50/60Hz, -Output:12VDC
Environmental
Operation Temperature: 0�XC-50�XC
Humidity: 5%RH to 95%RH (non-condensing)
Vibration: 5Hz~17Hz, 0.1�� double amplitude displacement; 17Hz~640Hz, 1.5G acceleration peak to peak.
Shock: 10G acceleration peak to peak
IP 65 compliant front panel
Color
Aluminum front, Silver color
Ordering
Info
IOVU-840-R10
8.4" TFT, SVGA, 64K color, touch Open HMI with built-in WindowsR CE 5.0 license
Optional
WK-084MS-R10
Wall Mount Kits
ARM-11-RS
LCD Monitor Arm Kits
STAND-100-RS
LCD Monitor Stand Kits
Packing List
1*IOVU-840
1*Null modem cable
1*Touch pen
1*Screw kit
1*12V, 25W AC power adapter
1*Power cable
1*Utility CD including SDK, utilities, and technical documents
