POCm-W22C-ULT3
POCm-W24C-ULT3 |

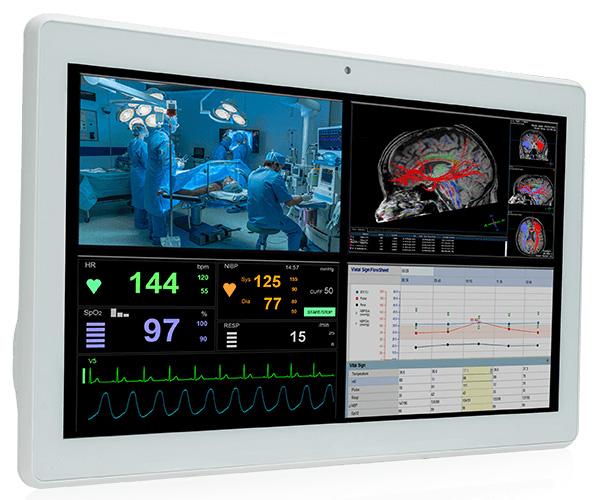

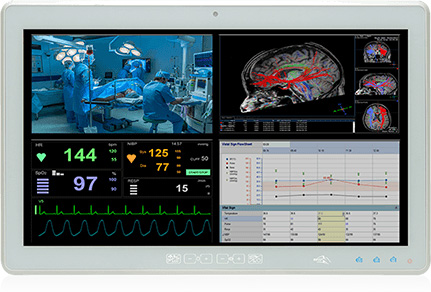

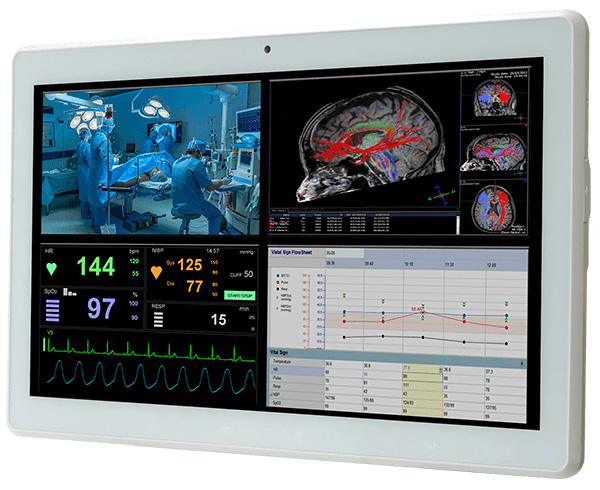

| 22" / 24” Medical Panel PC with 6th Generation Intel® mobile ULT Core™ i7/i5/Celeron® processor |
|
|
| Features |
 |
22” and 24” FHD fanless panel PC |
|
Intel® Celeron®, Core™ i5/i7 Skylake ULT SoC processor |
|
Three hot-swappable batteries with a total runtime of 8~16 hours is ideal for non-powered medical carts |
|
PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation |
|
Anti-bacteria housing with IP65 front bezel and IP32 rear cover protection |
| Key Features |

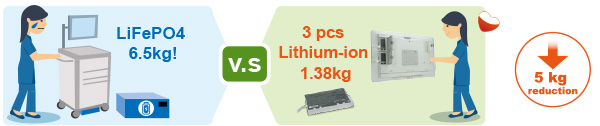

| 3 hot-swappable batteries that can provide sufficient power, and the ergonomic side-facing design ease the use for nurses with different height. Compared to the LiFePO4 battery of the traditional nursing cart, the batteries installed on the POCm have better design by reducing more than 5 kilograms of weight. The battery docking station can perform fast charging, taking only 3.5 hours from 0 to 100%. |
 |
 |
|
| ● Lightweight Design |
Traditionally, the battery of working station is bulky and occupies space. The hot-swappable batteries makes POCm series an ideal medical cart computer for decreasing the total weight up to 5 kg.
|
 |
|
| ● Highly Integration |
● Cost Effective |
POCm series product is a highly integrated PPC.
When building a mobile working station, the easy
installation steps prevent you from facing the trouble
of integrating different components and messy cabling. |
The typical price range of nursing cart battery is more than USD 600 (after service included). Our anti-bacteria battery saves more than USD 400 cost. Charging dock design meets the need of medical context and relieves the waste of time and efforts going back and forth between nursing station and ward. |
 |
 |
 |
| Communication |
| Bluetooth |
V4.2 (M.2 2230 A-E key module) |
| Wi-Fi |
IEEE 802.11 a/b/g/n/ac 2T2R module |
| Display |
| Backlight MTBF(hrs) |
30000 |
| Brightness(cd/m2) |
250 |
| Contrast Ratio |
1000:1 |
| LCD Size |
24＂ |
| Max Resolution |
1920x1080 |
| Environment |
| Humidity |
10% to 90% (non-condensing) |
| IP Level |
Front: IP65, Back: IP32 |
| Operating Temperature |
0°C~40°C |
| Storage Temperature |
-20°C~60°C |
| I/O Interface |
| Audio |
2 x 3W Speaker |
| Expansion |
1 x Full-size/half-size PCIe Mini (PCIe+USB) |

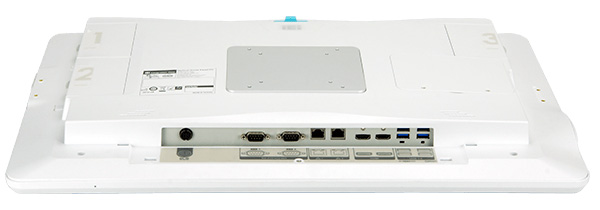

| I/O Ports and Switches |
2 x USB 2.0 (side)
4 x USB 3.0 port
2 x HDMI output
2 x GbE LAN port
2 x RS-232/422/485
1 x Audio out (side) + 1 x Mic in (side)
1 x Digital Mic
1 x DC jack |
| RAM |
1 x 4GB, 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB) |
| Other Features |
| Camera |
5-megapixel CMOS front-facing camera with auto-focus and digital microphone |
| Microphone |
digital microphone |
| System Cooling |
Fanless |
| Physical Characteristics |
| Color |
White |
| Construction Front Panel |
ABS+PC plastic with anti-bacterial material |
| Dimensions (LxWxH) (mm) |
594.6 x 379.6 x 71 mm |
| Mounting |
Wall, Stand and Arm VESA 100/75 |
| Power |
| Power adapter |
150W medical power adapter |
| Power Supply |
3 slots for hot swappable battery pack |
| System |
| Cooling method / System Fan |
Fanless |
| CPU |
6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U |
| Storage |
1 x 2.5＂ accessible SATA HDD bay
2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID |
| Touch |
| Touch Screen |
Projected capacitive type with 10-point multi-touch |
| Weight |
| Weight |
8.18 kg without batteries
9.53 kg with 3 batteries |
| I/O Interface |
| I/O Interface |
1 x AT/ATX Switch |
| 2 x HDMI |
| 2 x LAN(GbE) |
| 1 x Line out |
| 1 x Mic |
| 1 x Power In(19V DC jack) |
| 2 x RS-232 |
| 2 x Speaker |
| 2 x USB 2.0 |
| 4 x USB 3.0 |
| LED Function |
| LED Function |
1 x RFID indicator
3 x Battery indicator (Color : Blue/Red)
1 x Power Indicator |
| OSD Function |
| OSD Function |
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock & LCD on/off
1 x Task Manager & Power on/off |
|
| POCm-W24C-ULT3-C/PC/4G-R10 |
23.8" 250cd/m² FHD Medical panel PC ,with Intel® Celeron 3855U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10 |
| POCm-W24C-ULT3-i5/PC/4G-R10 |
23.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i5-6300U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10 |
| POCm-W24C-ULT3-i7/PC/4G-R10 |
23.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i7-6600U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10 |
1 x Power Adapter
|
1 x Power Cord |
|
|
|
 |
|
|
|
