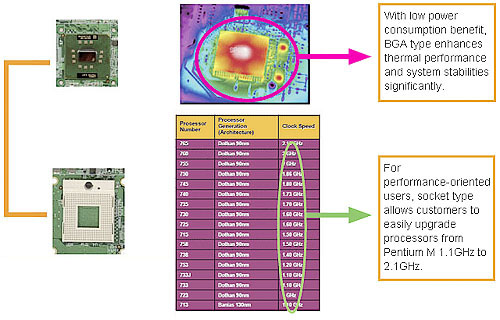

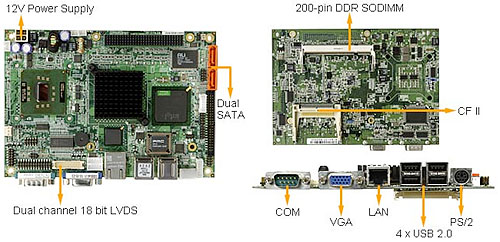

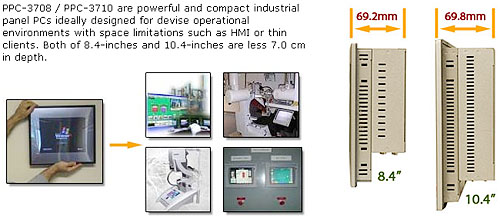

PPC-3708GS Pentium® M / Celeron® M Panel PC with 8.4" TFT LCD and Touchscreen Features Specifications Dimension Ordering Info Datasheet Features 8.4" TFT LCD Intel Pentium®M / Celeron® M CPU up to 2.1GHz Onboard ULV Celeron M 1 GHz zero cache CPU for BGA type DDR 266/200MHz SO-DIMM memory up to 1GB Gigabit Ethernet support One CompactFlash® Type II socket IP 65 compliant aluminum front panel Compact Size Different Type for Different Kind of Users Diverse Power Inputs Our Panel PC supports diverse power inputs which easily adapts to industrial environments. User-Accessible CF Slot PPC-3708 / PPC-3710 have a CF slot on the bottom panel. It makes users install or replace CF card simply and easily. High Brightness Panel For the industrial applications, higher luminance is indispensable. PPC-3708/3710 equipped with high brightness panel that can easily adapt to indoor, outdoor or high ambient lighting conditions.   PPC-3708GS PPC-3710GS LCD Size (inches) 8.4 10.4 Brightness (cd/m2) 450 / 220 400 / 250 IP 65 Compliant Aluminum    Front Panel PPC series have been fully tested in our UL50 certified laboratory and confirmed the IP65 specification. IP65 standard is the highest dusty, water and oil proof level in ground usage, it absolutely prevent any micro-particle into the system from front panel, and let the system adapting harsh environment. IQ Mount Support CPU Board – Nano-8522 Nano-8522 is an excellent solution based on Pentium M processor for a embedded system. It is a ideal design for low power consumption and space-critical applications. Specifications CPU Board Nano-8522 CPU •Socket-479 based Intel® Pentium® M / Celeron® M support FSB 400 MHz up to 2.1GHz •Onboard Intel Celeron M 1GHz / 800MHz zero cache Chipset Intel® 852GM + ICH4 Memory 1 x DDR 266/200MHz SO-DIMM socket up to 1GB VGA Intel 852GM support dual display SSD CF Type II Drive Bay 1 x 2.5" SATA/IDE HDD bay Ethernet •Intel® 82541Gigabit Ethernet controller •Intel® 82551ER 10/100 Mbps Ethernet controller Audio AC '97 2.3 Realtek ALC 655 I/O •1 x RS-232/422/485 ports •2 x RS-232 ports •4 x USB 2.0 ports •1 x PS/2 ports (KB/MS) •1 x VGA out •1 x LPT •1 x LAN •3 x Audio (Lin-in, Line-out, MIC-in) •1 x IDE •2 x SATA Expansion Slot N/A Touch Screen Optional 5-wire resistive type with RS-232 interface Power Supply (BGA) • AC adapter - 60W, 63000-FSP0601AD101C712-RS • Input: 90 ~ 240VAC @ 50/60Hz, Output: 12VDC (socket) • AC adapter - 80W, 63000-SPU65105-RS • Input: 90 ~ 240VAC @ 50/60Hz, Output: 12VDC Operation Temperature 0°C ~ 50°C Storage Temperature -20 ~ 60°C Vibration •5~17Hz 0.1" double amplitude displacement •17~640 Hz 1.5G acceleration peak to peak Shock 10G acceleration peak to peak. (11ms) Relative Humidity 5 ~ 95% @ 60° C, non-condensing Net / Gross Weight 2.2/ 4.4 Kg Dimension 243.57(w) x 178(H) x 75.2(D)mm LCD •Resolution: 800 x 600 SXGA •Brightness : 220 / 450cd/m2 •Contrast Ratio : 500:1 •Viewing Angle (H-V):120/100 •Backlight MTBF : 50000hrs Front Panel Protection IP 65 Complaint Ordering Info For Socket 479 models PPC-3708G H M S/ 8522 8.4" TFT panel PC with Nano-8522 and 512MB DDR 400MHz, silver color, RoHS PPC-3708G H M S/ 8522/T-R 8.4" TFT panel PC with Nano-8522, 512MB DDR 400MHz and touch screen, silver color, RoHS For BGA models PPC-3708G H M S/ 8522-1Gz 8.4" TFT panel PC with Nano-8522, Celeron M 1 GHz zero cache and 512MB DDR 400MHz, silver color, RoHS PPC-3708G H M S/ 8522-1Gz /T-R 8.4" TFT panel PC with Nano-8522, Celeron M 1 GHz zero cache, 512MB DDR 400MHz and touch screen, silver color, RoHS H : High Luminance version (450 cd/m2) M : 9 ~ 36V DC input version
