SRPC-5086A
15" Sunlight-readable military grade 1700 nits Panel PC, with Intel low power mobile 1.2GHz or regular 2.5 GHz CPU, 6-Wire Resistive Touch, VGA port, LAN, 6 x USB2.0, 6 x COM, CF slot, DOM slot, mini PCI slot, CD-ROM, 2 stereo speakers, PS/2 Keyboard and Mouse, Printer, optional 40GB anti-shock slim HDD, 512M DDR RAM

Features Specifications Dimensions Ordering Info

Features
100% water-proof front
IP-65,66, 67, 68, NEMA 4,12
Solid thick Aluminum front bezel
P-4 Low Power mobile CPU
Very high stability and reliability
Standard color : Black
Optional color : silver
VESA-75, 100 wall-mounting
Quick panel mounting design
Auto power on after AC power loss
Remote start up
Super slim design
1 x CF slot
Specifications

LCD Panel

15" Sunlight readable 1700 cd/m2 super bright high quality LCD panel designed for very high strict military use. 1024 x 768 resolution, true colors.

CPU

Intel ultra low power high speed 1.2GHz CPU

Chipset

Intel 855 chipset and integrated Intel 852GM for high speed 3D / 2D graphic processing engine

Front Panel & Housing

10mm solid thick aluminum front bezel. Ultra thick ruggedized steel construction

Water-Resistant
Front Panel

Meet NEMA-4,5, 6, 7,8, 12, IP-65, 66, 67, 68 water and dust standard. 100% water-proof at front

Vibration & Shock Resistant This machine is very welll designed to withstand high vibration and shock resistance
Panel-mount & Wall-mount

Meet VESA-75, 100 wall mount standard,
Easy Panel mount, four extra hook holes for quick hanging on wall. Desktop easel is optional

Touch Screen

7.5mm super thick strengthen high impact anti-vandalism Capacitive Touch screen. Anti-strike, anti-scratch, anti-cut, anti-light chemical liquid high optical transmission touch screen.

PPC-1580T-VP
(Vandal-Proof touch)

Anti-Vandal, Anti-strike, Anti-explosion, chemical-liquid-resistant, high transparency rate Touch .

Industrial Grade Quality

This is an industrial grade mainboard which is highly stable and reliable for 10 - 20 years of operation .

Intel Pentium-M Mobile CPU

Intel P-4 low power 1.2GHz mobile CPU which is equal to Celeron 2.0 Ghz speed

Memory (system)

Support slim size SO-DIMM DDR RAM up to 1GB .

Video Chipset

Intel Extreme graphics 2 with 266Mhz VGA core and 256-bit 3D engine Intel Dynamic Video Memory up to 64MB share memory.

Video Memory 64MB video memory for ultimate high speed for 3D / 2D graphics alleration.

ActiveX

Support ActiveX 8.0 & 8.1 for high speed gaming

Speakers / Audio

Built in 2 x speakers. Intel ICH4 with Realtek ALC 650 AC 97 codec supporting 5.1 channel audio sound

Ethernet Network

Intel 82540EM support ultra high speed 1000+ Mbps Gigabit LAN

Compact Flash (CF) slot

1 x Compact Flash slot for future expansion

HDD Slim size anti-vibration 20 / 40GB HDD.

CD-ROM (optional)

This is an optional slim size CD-ROM

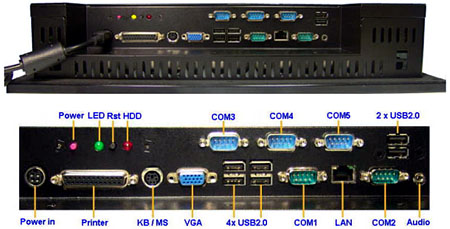

Serial ports

5 x RS232 and 1 x RS232 / 422 / 485.
5 COM ports are external at the I/O plate. 1 is inside for touch screen use

USB 2.0

6 x USB 2.0 at the I/O plate.

Mini PCI Expansion slot One mini-PCI slot on board for wireless LAN or other future expansion purpose.

LPT / Parallel Port

This Printer port support printer interface.

Keyboard / Mouse 1 x PS/2 support keyboard mouse
Operating Temperature 0 ~ 50 �XC
- Support Auto power on after AC power loss.
- Support remote power on through internet.
- Optional 8-bit Digital Input and Digital output.
Vibration Resistance Meet very strict IEC-60068 standard. 5 - 500 Hz at 2G random vibration life test under Windows XP operation.
Shock Resistance Meet very strict IEC-60068 shock life test at 15G acceleration for 11 msec duration under Windows XP operation
Power Supply Universal power supply supporting all AC 110 - 240V. DC power supplies are also available for your options.
Wall-mount Kit Wall-mount kit is available for option
Ordering Info
SRPC-5086A Built-in 1700 nits super bright for sunlight readable LCD display, suitable for bank's ATM, railway station, airport, gas station, public locations etc.
