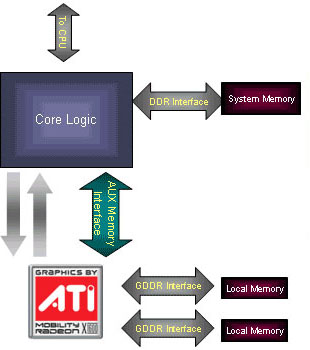

High Performance Memory Controller
• Fully associative texture, color, and Z/stencil cache designs
• Hierarchical Z-buffer with Early Z test
• Lossless Z Compression (up to 48:1)
• Fast Z-Buffer Clear
• Z/stencil cache optimized for real-time shadow rendering |
Ring Bus Memory Controller
• 256-bit internal ring bus for memory reads
• Programmable intelligent arbitration logic
• Fully associative texture, color, and Z/stencil cache designs
• Hierarchical Z-buffer with Early Z test
• Lossless Z Compression (up to 48:1)
• Fast Z-Buffer Clear
• Z/stencil cache optimized for real-time shadow rendering |

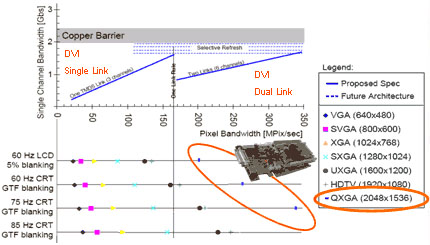

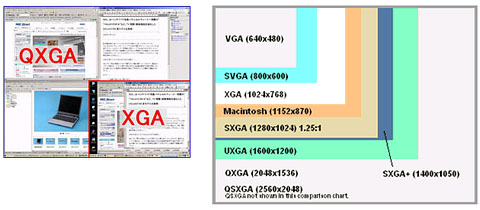

QXGA – High Quality Image
This connector appears almost identical to the dual-link DVI-D connector except that it has an additional four pins that surround the flat offset ground bar. This is because the DVI-I interface was designed to carry both digital and analog signals. However, most DVI displays and video sources are DVI-D, and the female ports do not contain sockets to accept the four extra analog pins. As a result, DVI-I cables are limited to a narrow range of applications such as certain KVM switches. Also note that the offset ground bar on a DVI-I plug is larger than the one on a DVI-D plug. This means that a DVI-I connector cannot fit into a DVI-D socket simply by removing the four analog pins.
DVI-I Single Link
