WSB-9452
PICMG 1.0 Intel® Core™2 Duo CPU with VGA / DVI, Dual PCI-E GbE, SATAII and Audio

Features Specifications Ordering Info Datasheet

Features
PICMG 1.0 and RoHS compliance
Support Intel® Core™2 Duo processor with FSB 667 MHz
Support Dual channel DDRII 400/533/667 MHz up to 2GB
2 x RS232, 7 x USB2.0, 4x SATAII (WSB-9452S/9452S-DVI Only)

WSB-9452 Dual Core Processor
  Build in VIA-MARK Platform

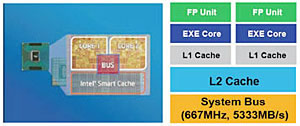

A Dual-Core Intel® Processor Benefit
» Two physical Cores in a package to share system loading
» Each with its own L1 cache and share the L2 cache to enhance processing speed
» Each with its own execution resources with truly parallel multi-tasking and threaded execution. Increased throughput
  Core™ 2 Duo Core™ Duo Pentium M
  T7600 T2500 760
Architecture 65-nm 65-nm 90-nm
L2 Cache 4MB 2MB 2MB
Clock Speed 2.33 GHz 2 GHz 2 GHz
Front Side Bus 667 MHz 667 MHz 533 MHz
Chipset 945GM 945GM 915GM
Power (TDP) 34W 31W 27W
Low Power Processor Perfomance Comparison

with Intel® Pentium®M
Processor 780 and
Intel® 915GM
with Intel® Core™ Duo
Processor 780 and
Intel® 915GM Express
with Intel® Core™2 Duo
Processor T7600 and
Intel® 945GM Express
Perfomance Results Single-core Dual-core Dual-core
SYSmark* 2004 SE1
Overall score
(%improvement)		 182 (Baseline) 243 (+34%) 273 (+50%)
MobileMark* 2005 office Productivity 2
Perfomance 215
253
(Baseline) 		298
283
(+12%)		 306
300
(+19%)
PCMark* 053
Overall score
(%improvement)
CPU Test
(%improvement) 		2350
(Baseline)
3587
(Baseline)		 3646
(+55%)
5399
(+51%)		 3957
(+68%)
5909
(+65%)
3DMark* 054
Overall score
(%improvement)
CPU Test
(%improvement) 		254
(Baseline)
2259
(Baseline) 		593
(+55%)
4186
(+51%) 		621
(+68%)
5261
(+65%)
SPEC* CPU2000 Rate
SPECint*_rate_base2000 20.7
(Baseline) 		38.9
(+88%) 		49.2
(+138%)
Low Power Processor Compatible Chipset
IPD Chipset
Compat Ability
Matrix		 Processor Generation Code Name Intel®855
GME (Montera GM) 		Intel®915
GM Express (Alviso GM) 		Intel®945
GM Express (Calistoga GM) 		Intel®GM965 Chipset (Crestline)
Intel®Core™2 Duo Processor T7500 Merom 800 Ｏ
Intel®Core™2 Duo Processor LV L7500 Merom 800 Ｏ
Intel®Core™2 Duo Processor T7400 Merom 667 Ｏ
Intel®Core™2 Duo Processor LV T7400 Merom 667 Ｏ
Intel®Core™ Duo Processor T2500 Yonah Ｏ
Intel®Core™ Duo Processor Low
Voltage L2400 		Yonah Ｏ
Intel®Core™ Duo Processor Ultra Low Voltage U2500 Yonah
Intel®Pentium®M Processor 760 Dothan Ｏ
Intel®Pentium®M Processor 745 Dothan Ｏ Ｏ
Intel®Pentium®M Processor Low
Voltage 738 		Dothan Ｏ Ｏ
Intel®Celeron®M Processor TBD Merom Ｏ
Intel®Celeron®M Processor 530 Merom Ｏ
Intel®Celeron®M Processor 440 Yonah Ｏ
Intel®Celeron®M Processor 370 Dothan Ｏ Ｏ　
Intel®Celeron®M Processor 320 Banias Ｏ
Intel®Celeron®M Procssor Ultra Low Voltage 423 Yonah Ｏ
Intel®Celeron®M Procssor Ultra Low Voltage 373 Dothan Ｏ Ｏ

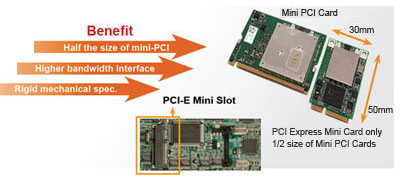

PCIe Mini Card Smaller but Faster
PCIe mini Concept
The PCI Express Mini Card replaces the Mini PCI card, which is a small internal card functionally identical to standard desktop computer PCI cards. Mini PCI cards are used mainly to add communications functions to portable computers that are built- or customized-to-order. The PCI Express Mini Card is half the size of the Mini PCI card.


Half the size of
mini-PCI Higher bandwidth interface Rigid mechanical spec.


IEEE WLAN Standard Over-the-Air (OTA) Estimates Media Access Control Layer, Service Access Point (MAC SAP) Estimates
802.11b 11 Mbps 5 Mbps
802.11g 54 Mbps 25 Mbps (when .11b is not present)
802.11a 54 Mbps 25 Mbps
802.11n 200+ Mbps 100 Mbps

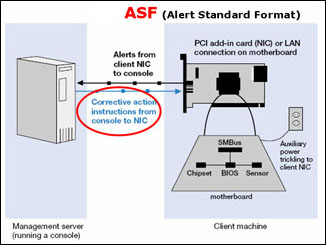

Dual GbE Support ASF2.0
ASF2.0 Features
» Remote management in low-power or OS absent states
» Bi-directional communication
» Plug and play
» System Health Monitor / Asset Security Management / Remote Control

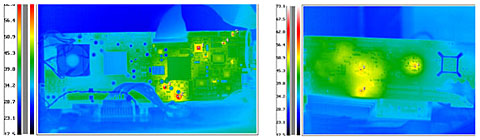

Real-Time Thermal Test

Meeting your power budget is essential for attaining system performance and cost goals.
Low power enables higher clock frequency, higher reliability, better noise margins, and reduced capital and operational costs.
Value Add Options

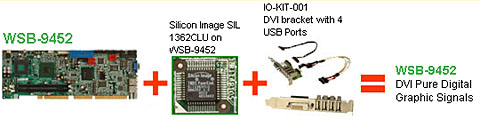

DVI Function

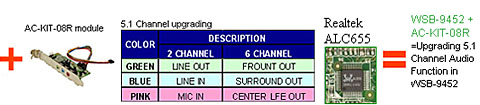

Audio Function
JMB SATA Raid 0,1
Compliance Features
» Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0
» Compliant with PCI Express Base Spec.
Revision 1.0a
» Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 1.0a
» Compliant with Serial ATA II: Extensions to Serial ATA 1.0a Revision 1.1
» Compliant with Gen1m and Gen2m Serial ATA II: Electrical Spec. Revision 1.0
Specifications
CPU Socket 479 Intel® Core™2 Duo, Core™ Duo/Solo with 533/ 667 MHz FSB
System Chipset Intel® 945G+ ICH7M
BIOS AMI Flash BIOS
System Memory 2 x 240-pin Dual channel DDRII 400/533/667 MHz up to 2GB
Ethernet Dual Broadcom BCM5787 PCI express GbE with ASF2.0 remote control support
I/O Interface 2 x RS232
7 x USB 2.0
1 x IDE (2 x IDE, WSB-9452S/WSB-9452S-DVI Only)
1 x FDD
1 X LPT
2 x SATAII (4 x SATAII by JMB363 WSB-9452S/9452S-DVI Only)
1 x PCI Express Mini card
1 x IrDA
1 x PS/2 for KB/MS
1 x 20-pin LPC (TPM Module)
Digital I/O

8 bit digital I/O, 4 input / 4 output

Display VGA integrated in Intel® 945GM
DVI (WSB-9452DVI/WSB-9452S-DVI)
LVDS Dual Channel 18-bit LVDS
Audio 5.1 Channel Audio Kit with Realtek ALC655
Watchdog Timer Software programmable supports 1~255 sec. system reset
Power Supply AT/ATX Power
Power Consumption 5V@7.15A,+12V@0.14A (YONAH DUAL CORE 1.83GHZ,DDR2 667MHz 1GB*2)-3D MARK
Temperature operation: 0 ~ 60°C (32 ~ 140°F)
Humidity peration: 5% ~ 95% non-condensing
Dimension 338(L)mm x 122(W)mm
Weight GW: 1.2Kg
Ordering Info
WSB-9452-R10 PICMG1.0 Intel Core ™ 2 Duo 533/ 667MHz processor, CRT/LCD, Dual PCIE GbE, and 2xSATAII
WSB-9452DVI-R10
 PICMG1.0 Intel Core ™ 2 Duo 533/ 667MHz processor, CRT/LCD/DVI, Dual PCIE GbE, and 2xSATAII
WSB-9452S-R10
 PICMG1.0 Intel Core ™ 2 Duo 533/ 667MHz processor, CRT/LCD, Dual PCIE GbE, and 4xSATAII
WSB-9452DVI-R10
 PICMG1.0 Intel Core ™ 2 Duo 533/ 667MHz processor, CRT/LCD/DVI, Dual PCIE GbE, and 4xSATAII
CF-479B-RS CPU Cooler
19800-000056-RS HDTV out cable with Comsite, Component and S-Video output
AC-KIT08R-R10 5.1 Channel Audio Kit with Realtek ALC655
32200-000017-RS FDD cable
19800-000049-RS LPT cable
