WSB-9454

PICMG 1.0 LGA775 Intel® Core™ 2 Duo, Pentium® D/4, Celeron ® D CPU with VGA/ DVI, Dual PCIE GbE, SATAII and Audio

Features
	PICMG 1.0 and RoHS compliance
	LGA 775 Intel® Core™ 2 Duo, Pentium® 4/D/ Celeron® D support up to 1066 MHz
	Support 4x DDRII 400/533/667 Mhz supported 4GB
	2 x RS232, 7 x USB2.0, 4x SATA-300

Platform Positioning

Processors and TDP	Intel® Core™ 2 Duo processor E6300	Intel® Pentium® D processor 950
TDP	65 Watts	130 Watts

Intel® Pentium® D Processor 950 have 50% higher TDP than Intel® Core™2 Duo processor E6300.

（900series）	TDP
950	130 W
940	130 W
930	95 W
920	95 W
（800series）	TDP
840	130 W
830	130 W
820	95 W

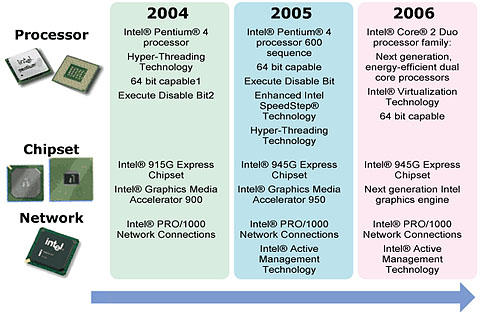

Platform Generation

Microsoft Vista AERO Support

Full AERO professional experience supported on current Intel integrated graphics chipsets

»	Desktop – Intel® 945G Express chipset
»	Mobile – Intel® 945GM Express chipset
»	No discrete graphics card required

WDDM drivers available today

»	Desktop drivers bundled with latest Windows Vista CTP build
»	Mobile drivers are available through mobile PC vendors
»	Support for all Windows Vista SKUs, including Ultimate Edition
»	Intel Production WDDM drivers will be available via support.intel.com and through Windows Update

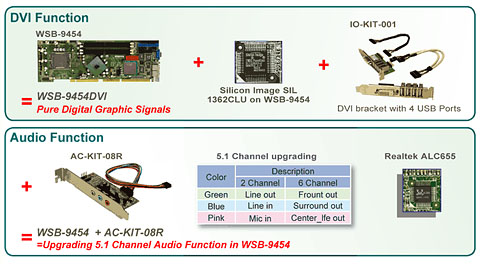

Value Add Options

Specifications
CPU	LGA775 INTEL® Core™ 2 Duo, Pentium® D/4, Celeron® D with 533/800/1066 MHz FSB
System Chipset	Intel® 945G+ ICH7
BIOS	AMI Flash BIOS
System Memory	4 x 240-pin Dual channel DDRII 400/533/667 Mhz up to 8GB
Ethernet	Dual Broadcom BCM5787 PCI express GbE
I/O Interface	2 x RS232 7 x USB 2.0 1 x IDE 1 X LPT 4 x SATAII-300 1 x IrDA 1 x PS2 for KB/MS
Digital I/O	8 bit digital I/O, 4 input / 4 output
Display	VGA integrated in Intel® 945G DVI by silconimage SIL1362 (WSB-9454DVI Only)
Audio	Option 5.1 or 7.1 Channel Audio Kit
Watchdog Timer	Software programmable supports 1~255 sec. system reset
Power Supply	ATX Power
Power Consumption	+5V@6.75A,+12V@7.24A (Pentium® 4 3.0GHz, DDR2 533MHz 1GBx4)-3D MARK
Temperature	operation: 0 ~ 60°C (32 ~ 140°F)
Humidity	peration: 5% ~ 95% non-condensing
Dimension	338(L)mm x 122(W)mm
Weight	GW: 1.2Kg

Ordering Info

WSB-9454-R10

PICMG1.0 Intel® Pentium® D 1066MHz processor, VGA, Dual PCIE GbE, and SATAII

WSB-9454DVI-R10

PICMG1.0 Intel® Pentium® D 1066MHz processor, VGA/ DVI, Dual PCIE GbE, and SATAII

AC-KIT08R-R10

5.1 Channel Audio Kit with Realtek ALC655

CF-520-RS

CPU Cooler support Pentium® 4 up to 3.4 GHz

32200-000017-RS

FDD cable

19800-000049-RS

LPT cable

CF-775A-RS

CPU Cooler support Pentium® D up to 3.6 GHz

AC-KIT-883HD-R10

7.1 Channel Audio Kit
