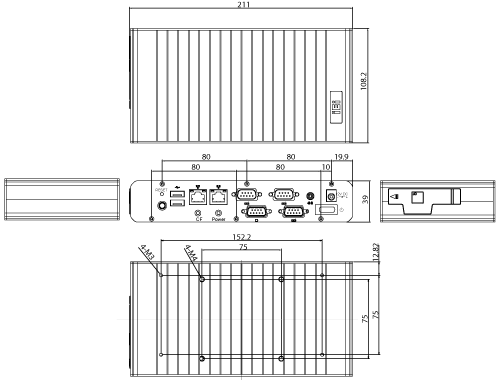

IBX-500A AMD® LX-800 Fanless Embedded System Features Specifications Dimensions Ordering Info Datasheet Features AMD® LX-800 500MHz fanless solution Dual 10/100Mbps Ethernet with 3 x RS-232 Built-in 802.11b/g wireless module Wall-mount and VESA-mount for flexible installation Specifications Processor AMD® Geode LX-800 500MHz Chipset AMD® LX-800 + CS-5536 System Memory 256MB / 512MB DDR Display VGA with DB-15 connector integrated in AMD Geode LX800 Ethernet 2 x 10/100Mbps Wireless VIA VT6655 802.11b/g compliance SSD 1 x type I/II CompactFlash Audio 1 x Speaker-Out (AC-97) I/O Ports 3 x RS232 COM Port 2 x USB 2.0 Power 12VDC in with 100-240AC in, 36W AC-DC adapter Operating Temperature 0 to 50°C Mounting Wall mount, VESA mount (optional) Dimensions (L x W x H) 210mm x 109mm x 38mm Net Weight 645g Dimensions (Unit:mm) Ordering Info IBX-500A/256MB Embedded Fanless Box Server with AMD LX-800 CPU, wireless module and 256MB DDR RAM, RoHS IBX-500A/512MB Embedded Fanless Box Server with AMD LX-800 CPU, wireless module and 512MB DDR RAM, RoHS Packing List 1 x QIG 1 x power cord 1 x screw set 1 x driver & manual CD 2 x mounting brackets 1 x wireless antenna 1 x power adaptor 4 x foot pad
