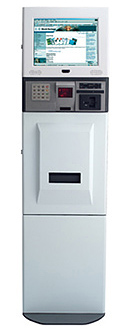

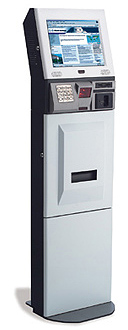

POSEIDON-150 15.0" Slim-profile Intel Pentium III/IV Self-service KIOSK   Overview Features Specifications Ordering Info Overview The POSEIDON Kiosk continues to exemplify our capability to design self-service Kiosk units that are modular, ergonomic and serviceable. Compact and stylish, POSEIDON is a Web-based interactive Kiosk designed for business locations where space is extremely concerned. Sharing the same proven core PC module found in the HERCULES, the POSEIDON adds a more aesthetic touch to the cabinet design. By integrating various peripherals including a media reader, a card reader, a pin pad and a thermal printer into a compact and secure stand-alone package, it allows multiple e-commerce applications to be deployed in a single unit. Features Compact & highly integrated design, able to be installed virtually anywhere in the business location Various peripheral options allow multiple business applications to be deployed in a single unit Versatile mounting options including table-top, pedestal, wall and pole mount offer freedom in installation Open architecture and fully PC compatible offers the best solution platform for system development Rugged cabinet made of heavy-duty steel allows system operation in public sectors Modular design eases maintenance effort and able to add peripherals for specific application Specifications SYSTEM Celeron/Pentium III (PC 620) Celeron/Pentium IV (PC 710B) DISPLAY MODULE 15.0�� color TFT LCD display with resistive or SAW touchscreen CHIPSET Intel 815E Intel 845GV/ICH4 CPU - Celeron 66/100/133MHz - Pentium III 100/133MHz - Pentium IV 1.8 to 3.06GHz - Celeron 1.7 to 2.0GHz DISPLAY - 4 X AGP LCD/VGA controller, advanced hardware 2D/3D GUI engine - Sharing memory architecture up to 64MB SYSTEM MEMORY 2 x 168pin DIMM socket SDRAM up to 512MB 2 x 184 pin supporting DDR up to 2GB L2 CACHE CPU built-in SPEAKER Internal speakers x 2 DRIVE BAY - 3.5�� HDD x 1 - Slim CD-ROM or its equivalent x 1 ETHERNET - RTL8100B 100/10 Base-T PnP Ethernet with RJ-45 phone jack - Support WAKE-ON-LAN PANEL PC I/O (Accessible inside the KIOSK cabinet) - Serial Ports x 4, COM 1,2 & 4 with +5V/12V power output on pin 9, COM 1, 3 & 4 RS-232 x 3, COM 2 RS-232/422/485x 1, COM 3 is internal type reserved for touchscreen - Parallel Port x 1: supports SPP/EPP/ECP - External FDD Interface x 1 - +5V/+12V DC-out x 1 - PS/2 Keyboard/Mouse Interface x 1 - DIO: Input x 2, output x 2 - USB Interface x 2 - VGA Interface x 1 - Brightness VR x 1 - MIC-in/Line-in/Speaker-out POWER SUPPLY ATX 150W, input range: 100~127V/5A @60Hz, 200~240V/2.5A @50Hz ATX 250W, input range: 100~240VAC, 4.0A, 50/60Hz TOUCHSCREEN 15.0" resistive or SAW touch with RS-232 controller (optional) PERIPHERALs (optional) - Magnetic card reader - Smart card reader - 8-in-1 media reader - Thermal receipt printer - Presentation scanner - Motion sensor - IrDA sensor - Pin pad KIOSK CABINET - Heavy-duty steel combinable in 3 parts - Front bezel: Vacuum forming plastic - Kiosk cabinet customization available Ordering Info POSEIDON P Standalone pole mount POSEIDON Kiosk combinable in 3 parts POSEIDON M Wall mount POSEIDON Kiosk with wall mount bracket x 2 POSEIDON T Wall mount POSEIDON Kiosk with base cover x 1 and wall mount bracket x 1
