| Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 (Skylake-H) In-Vehicle Fanless Embedded System with Intel® CM236, 18 GigE LAN with 16 PoE+, 4 Front-access SSD Tray, Isolated DIO, High Performance, Rugged, Extended Temperature |
|
|
 |
Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 Processor (Skylake-H) with CM236 Chipset supports up to 4K displays |
|
2 DDR4 2133MHz Memory, up to 32GB (ECC/ Non-ECC) |
|
Fanless, -25°C to 70°C Operating Temperature |
|
18 Gigabit LAN with 8 IEEE 802.3at PoE+ compliant |
|
4 Mini PCIe, 4 SIM Card Socket (3 External) |
|
4 Front-access 2.5" SSD Tray, 5 USB |
|
Supports 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS |
|
16 Isolated DIO, 16 GPIO |
|
Configurable Ignition Power Control |
|
6V to 78V DC-in, 200V Surge Protection |
|
UPS Supported (Optional) |

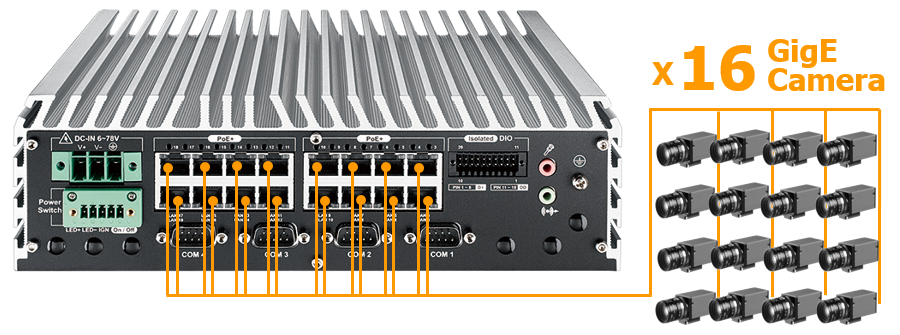

16-port PoE+
- IEEE 802.3at PoE+ standard compliant
- Supports 25.5W/48V each port
- Per-port Power On/Off Control
- Supports PoE management
|
 |
Trusted Data Security

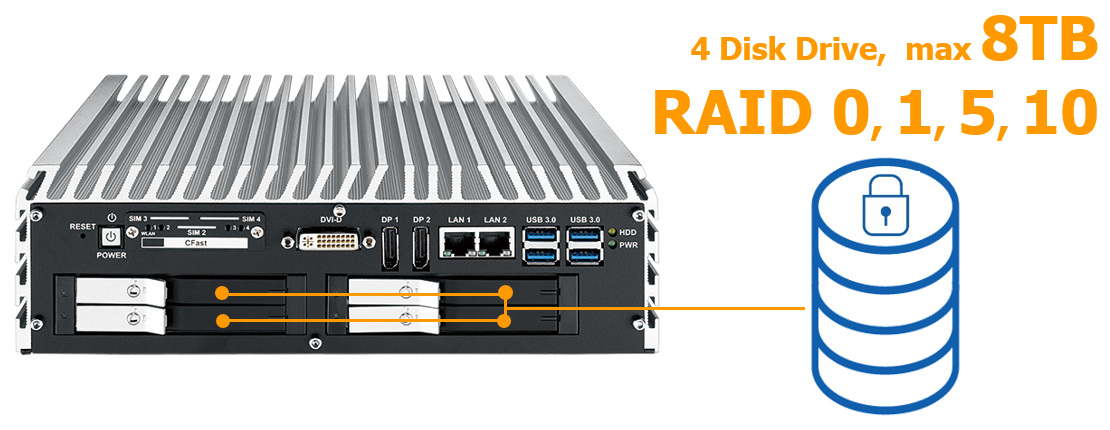

- 4 Front-access 2.5" SSD/ HDD trays,
up to 8TB capacity
- Supports RAID 0, 1, 5, 10 data security
- 6 SATA III support up to 6Gbps data rate
|
 |
Diversity of Expansions

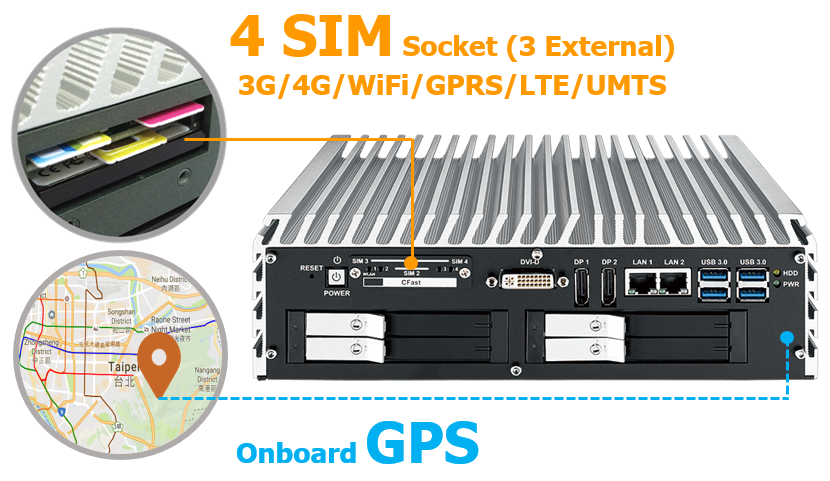

- 4 SIM sockets support seamless data communication
- Supports WiFi/ Bluetooth/ CANbus Onboard GPS
- supports Accelerometer, Gyroscope & Odometer
|
 |
 |
| System |
| Processor |
Intel® Xeon® E3-1505M v5/ Core™ i7-6820EQ/ i5-6440EQ Processor (Skylake-H) |
| Chipset |
Intel® CM236 |
| BIOS |
AMI |
| SIO |
IT8786E |
| Memory |
2 DDR4 2133MHz SO-DIMM, up to 32GB |
| I/O Interface |
| Serial |
4 COM RS-232/ 422/ 485 |
| USB |
- 4 USB 3.0 (External)
- 1 USB 2.0 (Internal) |
| Isolated DIO |
16 Isolated DIO : 8 DI, 8 DO |
| GPIO |
16 GPIO |
| LED |
Power, HDD, Wireless, PoE |
| SIM Card |
4 SIM Card Socket (3 External, 1 Internal) |
| Expansion |
| Mini PCIe |
4 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 3 Mini PCIe for PCIe/ USB/ External SIM Card
|
| SUMIT A, B |
2 SUMIT Slot (Optional) |
| Graphics |
| Graphics Processor |
Intel® HD Graphics P530/ 530
|
| Display Memory |
Shared Memory, up to 1.7GB |
| Interface |
- DVI-D : Up to 1920 x 1200 @ 60Hz
- DisplayPort 1 : Up to 4096 x 2304 @ 60Hz
- DisplayPort 2 : Up to 4096 x 2304 @ 60Hz
|
| Storage |
| SATA |
6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA |
1 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 1 CFast Socket, Push-in/ Push-out Ejector
- 4 Front-access 2.5" SSD/ HDD Tray
|
| Audio |
| Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface |
1 Mic-in, 1 Line-out |
| Ethernet |
| LAN 1 |
Intel® I219 Gigabit LAN supports iAMT 11.0 |
| LAN 2 |
Intel® I210 Gigabit LAN |
| LAN 2 |
Intel® I210 Gigabit LAN |
| PoE |
| LAN 3 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 4 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 5 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 6 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 7 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 8 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 9 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 10 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| Power |
| Power Input |
6V to 78V, DC-in |
| Power Interface |
3-pin Terminal Block : V+, V-, Frame Ground
|
| Ignition Control |
16 Mode (Internal) |
| Remote Switch |
5-pin Terminal Block : On, Off, IGN, LED+, LED- |
| Surge Protection |
Up to 200V/1ms Transient Power |
| UPS |
Supported (Optional) |
| Others |
| TPM |
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
| Smart Management |
Wake on LAN, PXE supported |
| HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| GPS |
Onboard GPS Module supports Accelerometer, Gyroscope and Odometer (Optional) |
| Software Support |
| OS |
Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical |
| Dimension (W x L x H) |
260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight |
4.2 kg (9.26 lb) |
| Mounting |
- Wallmount by mounting bracket
- Din Rail Mount (Optional)
- 2U Rackmount (Optional)
|
| Environment |
| Operating Temperature |
-25°C to 70°C (-13°F to 158°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% Humidity, non-condensing |
| Relative Humidity |
95% at 70°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC |
CE, FCC, EN 50155, EN 50121-3-2 |
|
|
|
Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 (Skylake-H) In-Vehicle Fanless Embedded System with Intel® CM236, 2 GigE LAN, 4 Front-access SSD Tray, Isolated DIO, High Performance, Rugged, Extended Temperature |
IVH-9008-PoER
|
Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 (Skylake-H) In-Vehicle Fanless Embedded System with Intel® CM236, 10 GigE LAN with 8 PoE+, 4 Front-access SSD Tray, Isolated DIO, High Performance, Rugged, Extended Temperature |
| IVH-9016-PoER |
Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 (Skylake-H) In-Vehicle Fanless Embedded System with Intel® CM236, 18 GigE LAN with 16 PoE+, 4 Front-access SSD Tray, Isolated DIO, High Performance, Rugged, Extended Temperature |
|
|
|
 |
|
|
